Male Npt X Female Metric Fixed

Description & Features

Constructed from steel in a straight configuration, this adapter connects a 1/2"-14 NPTF male thread on one end to an M14 x 1.5 female metric thread on the other. The Male Npt X Female Metric Fixed design provides a rigid, non-swivel connection suited for hydraulic circuits where thread type conversion between NPT and metric standards is required.

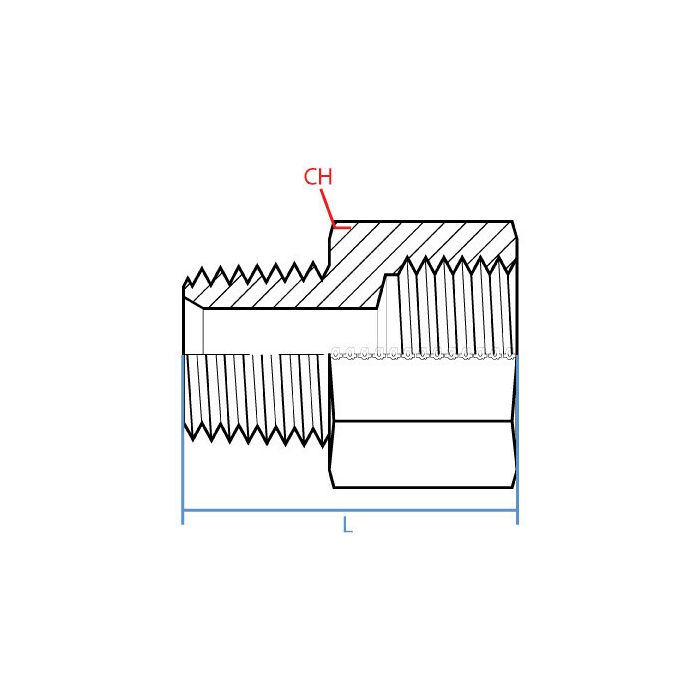

Manufactured by Adaptall, the fitting measures 31.8mm in length with a 24mm ch width, making it a compact solution for tight installations. The fixed straight body keeps alignment straightforward and eliminates rotational movement at the joint, which is useful where consistent thread orientation is needed.

SKU: 9325-08-14X1.5

Supplier Part Number (MPN): 9325-08-14X1.5

Specifications

Brand adapt-all	Connection Size 1 1/2 in	Connection Size 2 14 mm	Connection Type Female Metric, MNPT	Connection Type 1 Male NPT	Connection Type 2 Female Metric	Dimension Standards ANSI B1.20.3, DIN 7631	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9325 Series	Thread Size 1/2-14 x M14x1.5

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
9325-02-10X1.0	1/8 in	10 mm	1/8-27 x M10x1	14 mm
9325-04-12X1.5	1/4 in	12 mm	M12x1.5 x 1/4-18	19 mm
9325-04-14X1.5	1/4 in	14 mm	1/4-18, M14x1.5	19 mm
9325-06-14X1.5	3/8 in	14 mm	M14x1.5 x 3/8-18	22 mm
9325-06-16X1.5	3/8 in	S16	M16x1.5 x 3/8-18	22 mm
9325-06-18X1.5	3/8 in	18 mm	M18x1.5 x 3/8-18	24 mm
9325-08-18X1.5	1/2 in	18 mm	1/2-14 x M18x1.5	24 mm
9325-08-22X1.5	1/2 in	22 mm	M22x1.5 x 1/2-14
