Male Jic X Male Jis

Ask A Question

Description & Features

This steel, straight Male JIC X Male Jis fitting features a 3/4" Side 1 Size with a 1-1/16 - 12 UN Side 1 Callout, along with a 3/4" Side 2 Size with a G 3/4 - 14 Side 2 Callout.

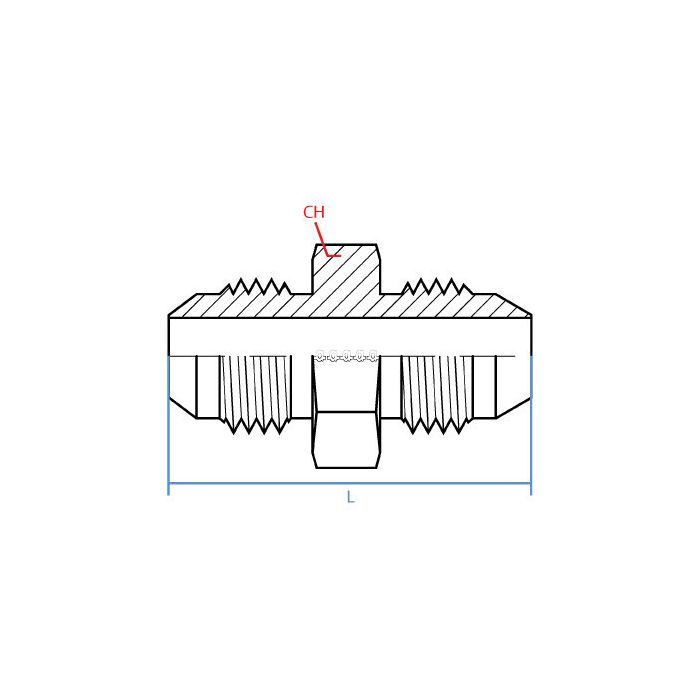

This Adaptall fitting has a Side 1 JIC type, and a Side 2 Jis type. The Adaptall Ch Width is 32mm, and the Adaptall L Length is 64.6mm.

SKU: 9337-12-12

Supplier Part Number (MPN): 9337-12-12

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male JIC, Male JIS
Connection Type 1
Male JIC
Connection Type 2
Male JIS
Dimension Standards
JIS B 0202, SAE J514
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9337 Series
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Clint P on May 6, 2025, 6:46 PM
Got a hydraulic line running JIC on one end and JIS on the other, this straight adapter the right call for tying those two together?
Answer by: Customer Support on May 8, 2025, 5:31 PM
That's what this fitting handles. One end is a 3/4" male JIC with a 1-1/16-12 UN thread, and the other is a 3/4" male JIS with a G 3/4-14 threading. Both sides are male, so you'd need female JIC and female JIS ports on your lines for it to seat up right. Steel construction, straight profile, no angles or offsets involved.
