90* Fem Jic X Fem Jic Swivel

Description & Features

Designed for tight-space routing in hydraulic assemblies, this steel 90° elbow fitting connects two female JIC ports at a right angle with a swivel function that simplifies alignment during installation. Both sides carry a 7/16-20 UNF thread and a 1/4" JIC connection, making this the 90° Fem JIC X Fem JIC Swivel a symmetrical fitting suited for consistent line-to-line connections.

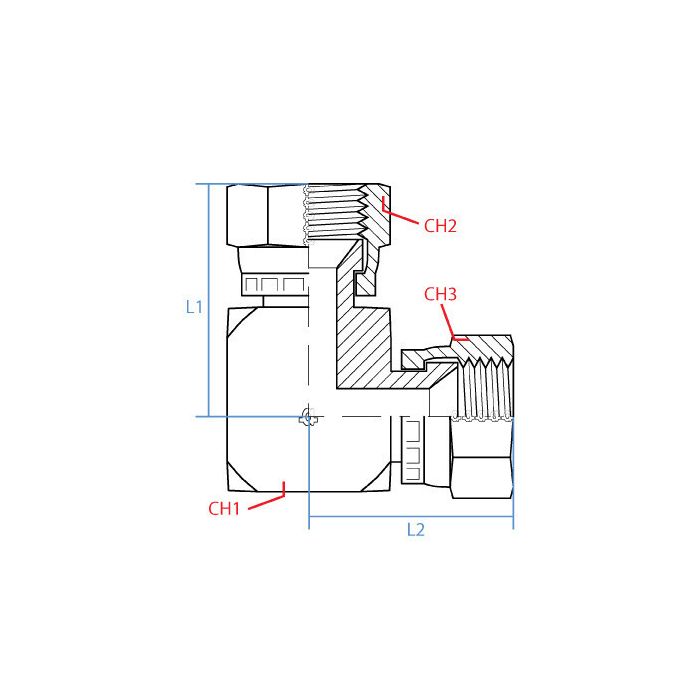

Manufactured by Adaptall, the fitting is constructed from steel and features matching L1 and L2 lengths of 22mm. The 13mm and 14mm wrench flats on each side allow for secure torquing without distorting the swivel joint. The 90° geometry is well suited to hydraulic circuits where a direction change is needed within a compact envelope.

SKU: 9355-04-04

Supplier Part Number (MPN): 9355-04-04

Specifications

CH1 Width 13mm	CH2 Width 14mm	L1 Length 22mm	L2 Length 22mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender F	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9355-04-04	Product Weight 0.10 lbs

Product Questions & Answers (1)

Question by: Donna E on Apr 7, 2025, 10:29 AM

Will this fitting hold up if I'm constantly adjusting lines? I work on heavy equipment and things are always vibrating loose.

Answer by: Customer Support on Apr 8, 2025, 8:56 PM

This 90° elbow fitting is designed with a swivel function specifically to allow for easier alignment, which can help when dealing with vibrations or adjustments. The steel construction should provide good durability in heavy equipment applications.
