90* Fem Jic X Fem Jic Swivel

Description & Features

This 90° elbow fitting is designed with precision to meet demanding industrial applications. Constructed from durable steel, it features a swivel design for ease of installation and alignment. Both ends are equipped with 9/16 - 18 UNF threads, ensuring compatibility with standard JIC connections. Each side accommodates a 3/8" female JIC fitting, making it an excellent choice for hydraulic systems requiring a reliable connection.

With a compact form factor, it has an overall length of 34mm and a width of 19mm on both channels, facilitating use in tight spaces without compromising performance. Manufactured by Adaptall, this fitting ensures robust and secure connections in high-pressure environments.

SKU: 9355-06-06

Supplier Part Number (MPN): 9355-06-06

Specifications

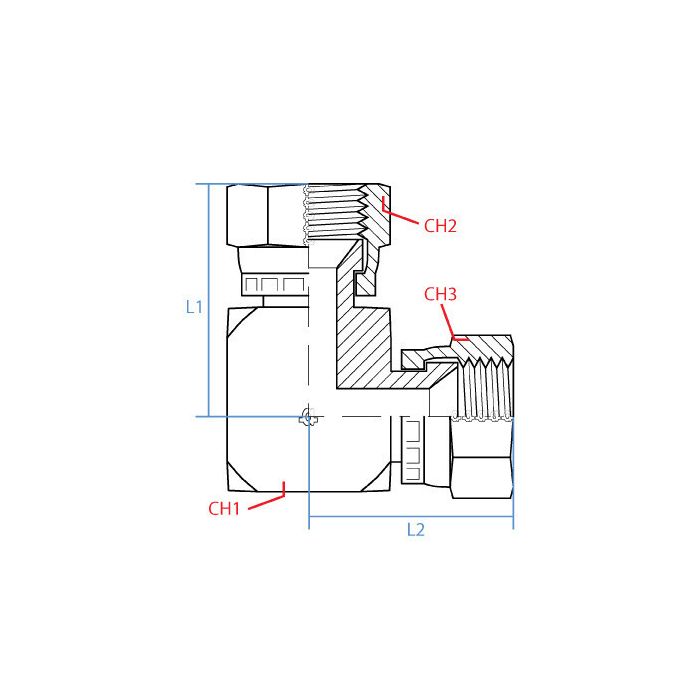

CH1 Width 19mm	CH2 Width 19mm	L1 Length 34mm	L2 Length 34mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender F	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9355-06-06	Product Weight 0.24 lbs

Product Questions & Answers (2)

Question by: Hank G on Mar 15, 2026, 6:52 AM

Will this swivel fitting hold up okay in a hydraulic system running around 2000 PSI?

Answer by: Customer Support on Mar 17, 2026, 6:10 AM

Constructed from durable steel and designed for demanding industrial use, this Adaptall fitting should provide robust and secure connections in high-pressure environments like that.

Question by: Harold C on Jul 3, 2025, 7:37 PM

both ends on this are 3/8 female JIC, right? just wanna make sure before i order a handful of em

Answer by: Customer Support on Jul 5, 2025, 8:13 AM

Correct on both counts. Each side is a 3/8" female JIC with 9/16-18 UNF threads, so you've got matching connections on both ends. Standard JIC fittings will mate right up on either side without any adapters in between.
