90* Fem Jic X Fem Jic Swivel

Description & Features

This Adaptall 90° elbow features female JIC connections on both ends, each with a 1/2" size and 3/4 - 16 UNF callout. Constructed from durable steel, this 90* Fem JIC X Fem JIC Swivel ensures reliable performance in hydraulic applications.

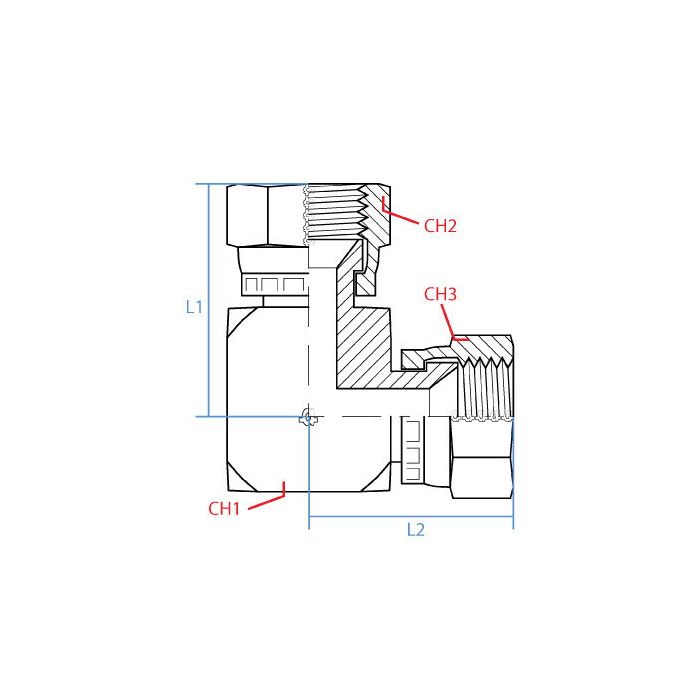

This fitting has a Ch1 width of 22mm and L1 length of 31mm. The Ch2 width is 22mm and the L2 length is 31mm, contributing to its compact and efficient design.

SKU: 9355-08-08

Supplier Part Number (MPN): 9355-08-08

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Female JIC, Female JIC Swivel	Connection Type 1 Female JIC	Connection Type 2 Female JIC Swivel	Dimension Standards ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 22 mm	Material Steel	Material Construction Carbon Steel	Series 9355 Series	Thread Size 3/4-16

Product Questions & Answers (2)

Question by: Rex W on Mar 28, 2026, 10:15 AM

both ends are 3/4-16 UNF female JIC, right? just want to make sure before i order a couple of these

Answer by: Customer Support on Mar 29, 2026, 3:24 PM

Correct on both counts. Each end is a 3/4-16 UNF female JIC in 1/2" size, so you've got matching connections on either side of the 90-degree turn. Steel construction throughout, and the overall footprint is pretty compact at 31mm on each leg.

Question by: Pete C on Jan 9, 2026, 10:58 AM

trying to swap out an old 90 elbow, is this one the swivel style with female JIC on both ends in 1/2?

Answer by: Customer Support on Jan 11, 2026, 6:26 AM

Built as a 90 degree elbow with a swivel, it uses female JIC connections on both sides. Both ends are 1/2 inch size with a 3/4-16 UNF callout, so it matches that common JIC 1/2 setup end to end.
