Female Komatsu Run Tee

Description & Features

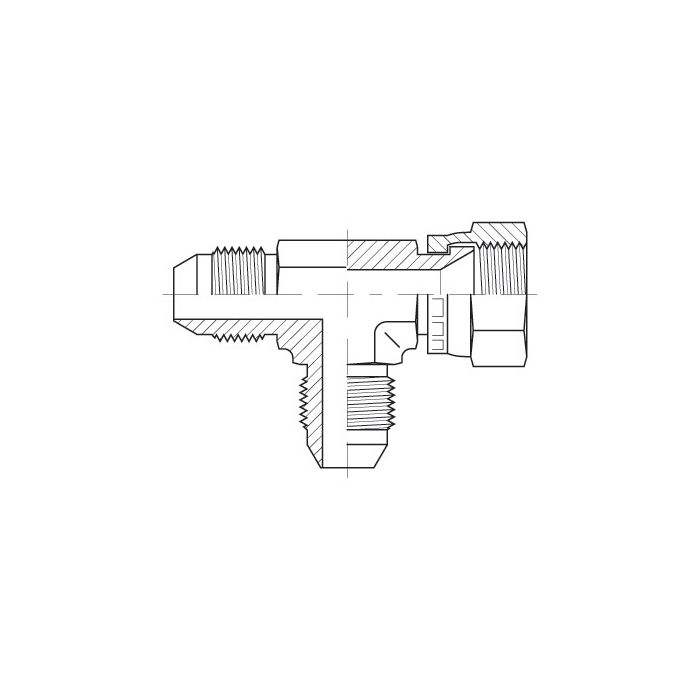

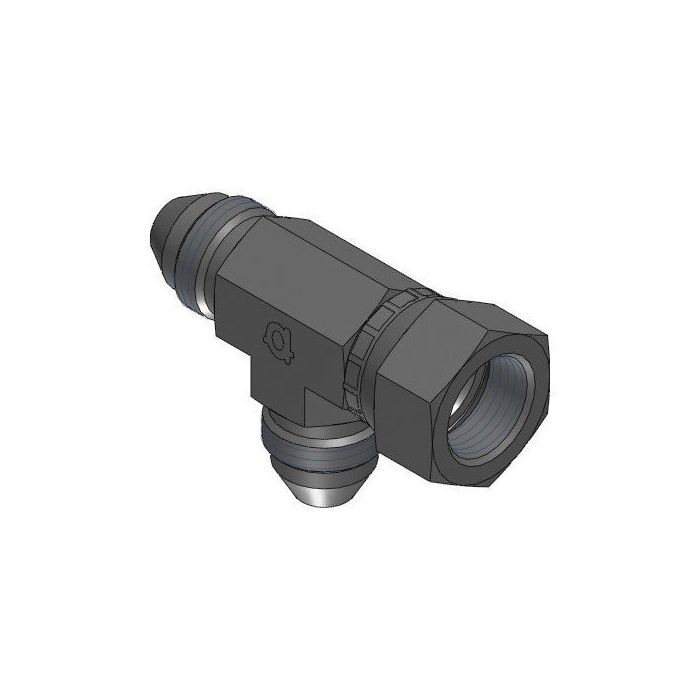

This Adaptall steel tee fitting features a female Komatsu branch port.

The Komatsu branch (Side 3) has M14 x 1.5 threading and a 14mm width. Both run ports (Sides 1 and 2) also feature M14 x 1.5 threading, 14mm width, and male gender. The Adaptall L1 length is 24.5mm, and the Adaptall L2 length is 28.5mm. This female Komatsu run tee is suitable for various hydraulic applications.

SKU: 9391-14-14-14

Supplier Part Number (MPN): 9391-14-14-14

Specifications

Brand adapt-all	Connection Size 1 14 mm	Connection Size 2 14 mm	Connection Size 3 S14	Connection Type Female Komatsu	Connection Type 1 Female Komatsu	Connection Type 2 Female Komatsu	Connection Type 3 Female Komatsu	Dimension Standards ISO 261	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 9391 Series	Thread Size M14x1.5

Product Questions & Answers (3)

Question by: Lyle P on Apr 27, 2025, 5:31 PM

all three ports on this thing are M14 x 1.5, that right? just want to make sure before I go swapping it in

Answer by: Customer Support on Apr 28, 2025, 6:30 PM

all three are M14 x 1.5 threading with a 14mm size across the board. The two run ports on Sides 1 and 2 are male Komatsu, and the branch port on Side 3 is female Komatsu. Same thread spec throughout, so no mixing and matching to worry about on that front.

Question by: Howard O on Apr 17, 2025, 9:04 PM

Will this tee work with standard Komatsu fittings?

Answer by: Customer Support on Apr 19, 2025, 6:50 AM

Yes, this tee is designed to work with any hydraulic system using female Komatsu M14 x 1.5 fittings on the branch port, and male Komatsu M14 x 1.5 fittings on the run ports.

Question by: Brenda C on Jan 23, 2026, 7:48 PM

trying to replace a tee on a Komatsu line, are all three ports M14 x 1.5 on this one?

Answer by: Customer Support on Jan 24, 2026, 8:22 PM

All three sides are Komatsu M14 x 1.5 with a 14 mm size. Sides 1 and 2 are male, and the branch port on side 3 is female.
