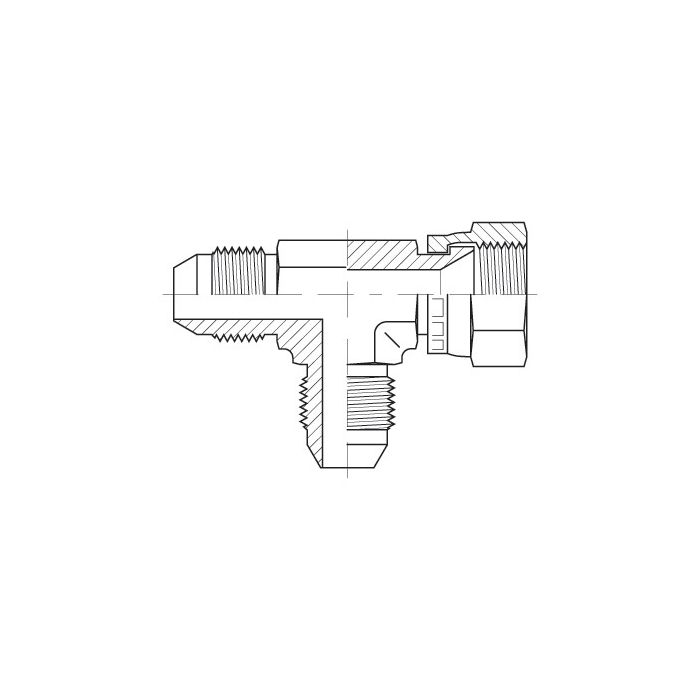

Female Komatsu Run Tee

Description & Features

Constructed from durable steel, this Female Komatsu Run Tee is designed to ensure reliable performance in demanding industrial applications. Featuring a tee shape, it facilitates efficient hydraulic connections with its M16 x 1.5 thread sizes on all three sides. The component boasts a compact design with Adaptall Ch1 and Ch2 widths of 19mm and 22mm, respectively, and lengths of 27mm (L1) and 32mm (L2), making it suitable for tight space installations.

The Female Komatsu Run Tee provides a seamless integration with Komatsu systems, thanks to its precisely engineered male and female connections. This compatibility ensures optimal hydraulic fluid management and system integrity, making it an ideal choice for professionals in the industrial sector seeking robust and reliable fittings.

SKU: 9391-16-16-16

Supplier Part Number (MPN): 9391-16-16-16

Specifications

CH1 Width 19mm	CH2 Width 22mm	L1 Length 27mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size 16mm	Side 1 Type Komatsu	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Komatsu	Side 3 Callout M16 X 1.5	Side 3 Gender F	Side 3 Size 16mm	Side 3 Type KOMATSU	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9391-16-16-16	Product Weight 0.30 lbs

Product Questions & Answers (3)

Question by: Scott F on Jun 26, 2025, 6:39 AM

got a Komatsu machine that needs a tee fitting with M16 x 1.5 threads on all three ports, this the right part for that?

Answer by: Customer Support on Jun 27, 2025, 3:24 PM

All three sides on this fitting run M16 x 1.5, so if your machine calls for that thread size across the board, you're looking at the right part. Two of the ports are male Komatsu and the third is female Komatsu, so keep that in mind when you're sorting out which port connects where in your line setup.

Question by: Hugh S on Apr 14, 2025, 3:51 PM

Reckon this'll fit right with my Komatsu setup? Gotta make sure 'fore I order.

Answer by: Customer Support on Apr 15, 2025, 8:45 PM

This female Komatsu run tee is engineered for seamless integration with Komatsu systems, utilizing M16 x 1.5 threads to ensure optimal hydraulic fluid management.

Question by: Ronnie S on Dec 23, 2025, 9:41 PM

trying to tee off a Komatsu line, are all three ports on this one M16 x 1.5?

Answer by: Customer Support on Dec 25, 2025, 6:45 AM

All three sides are M16 x 1.5 Komatsu connections. Side 1 and Side 2 are male, and Side 3 is female, all in 16 mm size.
