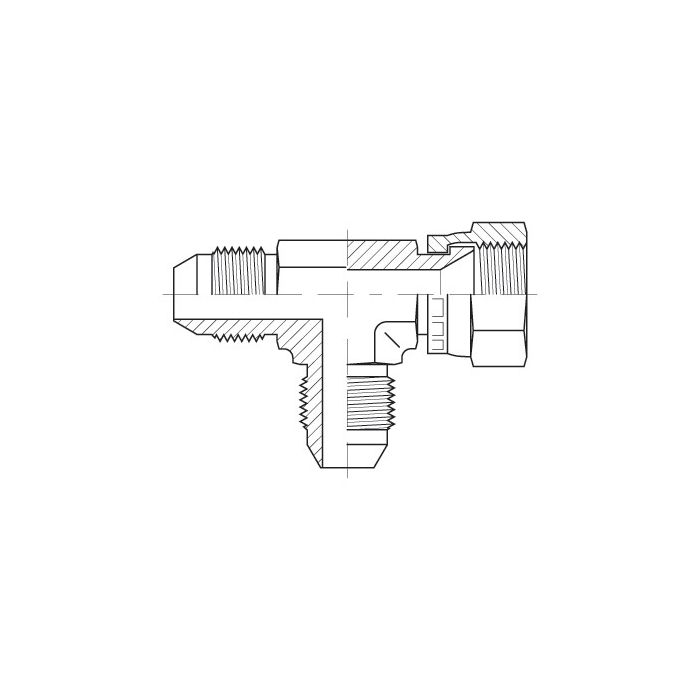

Female Komatsu Run Tee

Description & Features

Configured as a run tee with three M22 x 1.5 Komatsu-style ports, this steel fitting routes flow through the run while providing a female branch connection on Side 3. The two run ports (Sides 1 and 2) are male Komatsu at 22mm, while the branch port is a female Komatsu at the same thread size, making all three connections consistent in thread pitch and diameter.

The Female Komatsu Run Tee from Adaptall is constructed from steel and suits hydraulic line assemblies where Komatsu-compatible fittings are required. With a Ch1 width of 22mm, Ch2 width of 27mm, L1 length of 34mm, and L2 length of 37.5mm, the fitting is compact and suited to installations with limited clearance. Its uniform M22 x 1.5 threading across all ports simplifies assembly in systems using Komatsu-standard connections throughout.

SKU: 9391-22-22-22

Supplier Part Number (MPN): 9391-22-22-22

Specifications

CH1 Width 22mm	CH2 Width 27mm	L1 Length 34mm	L2 Length 37.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size 22mm	Side 1 Type Komatsu	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Komatsu	Side 3 Callout M22 X 1.5	Side 3 Gender F	Side 3 Size 22mm	Side 3 Type KOMATSU	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9391-22-22-22	Product Weight 0.45 lbs

Product Questions & Answers (2)

Question by: Dwayne O on Dec 30, 2025, 12:15 PM

got two male komatsu m22x1.5 lines already, will this tee let me add a third line with a female port on the branch?

Answer by: Customer Support on Jan 1, 2026, 6:17 AM

Built as a run tee, it keeps the flow path through Sides 1 and 2 with male Komatsu M22 x 1.5 ports, and Side 3 is a female Komatsu M22 x 1.5 branch. All three ports share the same M22 x 1.5 thread size and pitch, so it matches up with Komatsu-style connections at 22 mm on every leg.

Question by: Kirk J on Jun 5, 2025, 7:02 PM

all three ports are M22 x 1.5 on this thing? run ports and the branch too?

Answer by: Customer Support on Jun 7, 2025, 10:03 AM

all three connections run on M22 x 1.5 threading. The two run ports on Sides 1 and 2 are male Komatsu, and the branch port on Side 3 is female Komatsu, but the thread pitch and diameter are the same across the board. Makes for a pretty clean assembly when your whole system is already built around Komatsu-standard fittings.
