90* Male X Female Komatsu

Description & Features

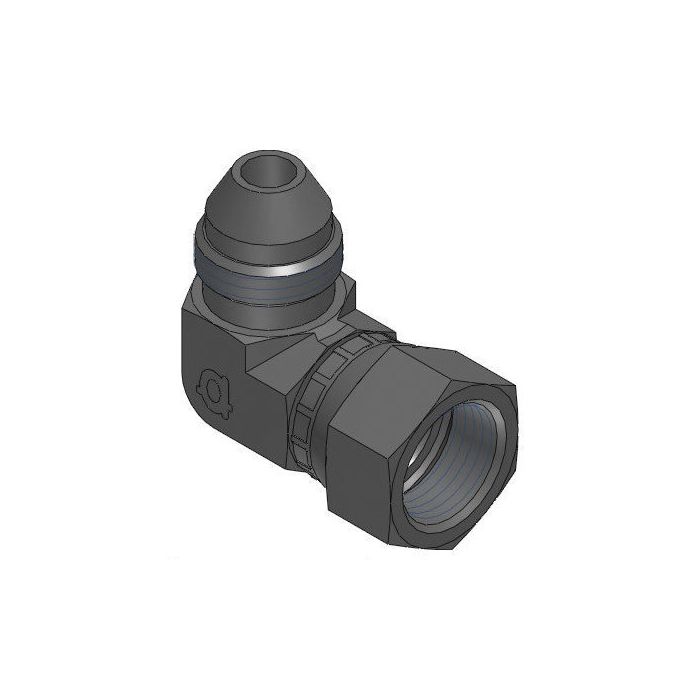

Machined from steel, this 90° elbow adapter connects two M16 x 1.5 Komatsu-thread ports in a male-to-female configuration, allowing a right-angle transition within tight routing layouts. The 90* Male X Female Komatsu from Adaptall measures 28mm on the male side length and 32mm on the female side length, with wrench flats of 19mm and 22mm respectively, making it straightforward to install with standard tooling.

Both sides share the same 16mm thread size and Komatsu thread form, making this adapter well suited for use in Komatsu equipment hydraulic circuits where a directional change is needed at a port connection. Steel construction provides the durability expected in demanding mobile and industrial hydraulic applications.

SKU: 9392-16-16

Supplier Part Number (MPN): 9392-16-16

Alternate Part Numbers: C1GH78

Specifications

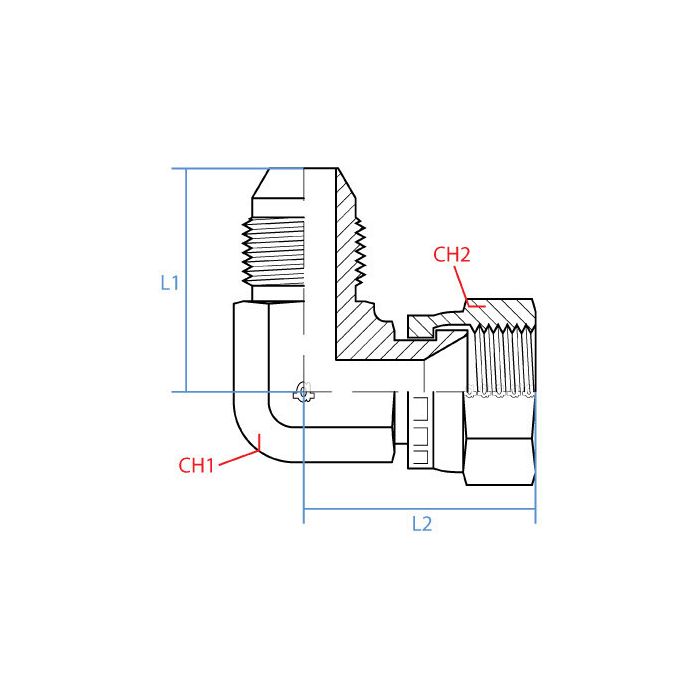

CH1 Width 19mm	CH2 Width 22mm	L1 Length 28mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size 16mm	Side 1 Type Komatsu	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Komatsu	Alternate Part Numbers Alternate Part Number C1GH78	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9392-16-16	Product Weight 0.25 lbs
