90* Male X Female Komatsu

Description & Features

Constructed from steel, this 90° elbow adapter connects two M24 x 1.5 Komatsu-threaded ports in a male-to-female configuration, redirecting hydraulic line routing at a right angle. With a 24mm thread size on both sides, the fitting maintains a consistent connection diameter across the junction, simplifying installation in symmetrical port arrangements.

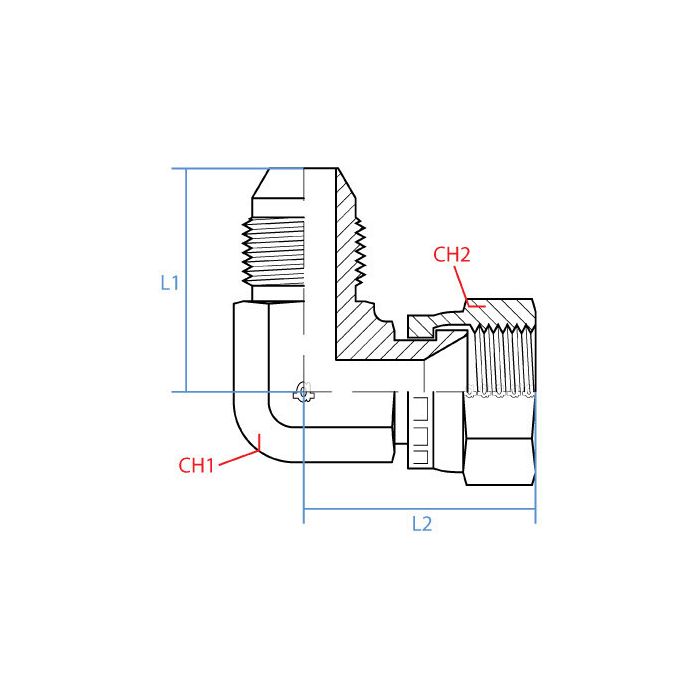

The 90* Male X Female Komatsu adapter is an Adaptall product, designed for use in hydraulic systems where Komatsu-style fittings are specified. Side 1 presents a male M24 x 1.5 thread (Ch1 width: 27mm, L1 length: 41mm), while Side 2 offers a female M24 x 1.5 thread (Ch2 width: 32mm, L2 length: 42mm). This configuration suits applications requiring a compact directional change at a port without modifying the surrounding hardware.

SKU: 9392-24-24

Supplier Part Number (MPN): 9392-24-24

Specifications

CH1 Width 27mm	CH2 Width 32mm	L1 Length 41mm	L2 Length 42mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size 24mm	Side 1 Type Komatsu	Side 2 Callout M24 X 1.5	Side 2 Gender F	Side 2 Size 24mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9392-24-24	Product Weight 0.60 lbs

Product Questions & Answers (3)

Question by: Terry R on Feb 15, 2026, 9:00 PM

trying to swing a hose 90 degrees without changing port sizes, is this the right elbow for that?

Answer by: Customer Support on Feb 17, 2026, 5:53 PM

Built as a 90° elbow adapter, it turns the line at a right angle while keeping the same Komatsu thread on both ends. Both sides are M24 x 1.5, with a male on Side 1 and a female on Side 2, so you are not stepping the size up or down.

Question by: Dustin G on May 28, 2025, 3:26 PM

fitting's got male on one side and female on the other, does that mean it'll thread right into an existing female Komatsu port and then accept another male fitting on the opposite end?

Answer by: Customer Support on May 30, 2025, 2:21 PM

Correct setup. The male end (M24 x 1.5) threads into a female Komatsu port on your equipment, and the female end accepts an incoming male M24 x 1.5 fitting. Both sides share the same 24mm thread size, so the connection diameter stays consistent straight through the junction. The 90-degree angle just redirects where your line runs from there.

Question by: Clint M on Aug 21, 2025, 6:53 AM

Will this fitting work with standard Komatsu connections?

Answer by: Customer Support on Aug 22, 2025, 9:33 PM

It is indeed made to fit M24 x 1.5 Komatsu-threaded ports on both ends.
