90*Male X F.Komatsu (Moq-200)

Description & Features

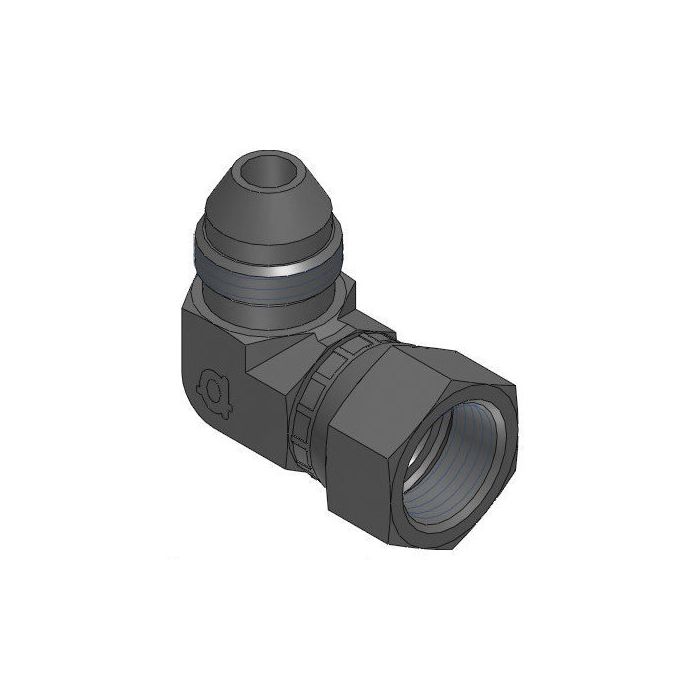

Designed for optimal performance in hydraulic systems, this 90° elbow fitting seamlessly connects Komatsu components with precision. Constructed from durable steel, it ensures long-lasting reliability and strength under demanding conditions. Featuring a male M33 x 1.5 connection on one side and a female M33 x 1.5 on the other, this versatile fitting facilitates smooth and efficient fluid transfer.

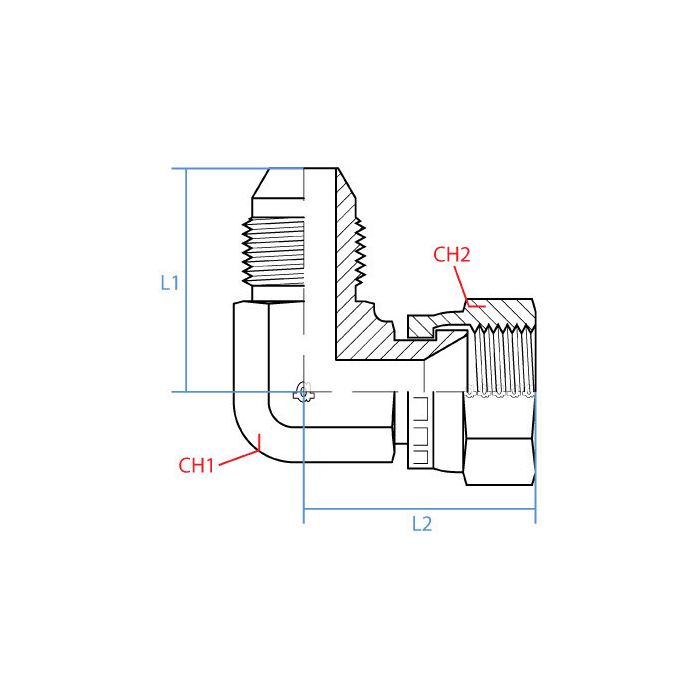

The Adaptall 90° Male X Female Komatsu elbow offers a compact design with a Ch1 width of 33mm and a Ch2 width of 41mm, fitting snugly into tight spaces while maintaining robust connection integrity. With an L1 length of 45mm and an L2 length of 50mm, its dimensions are optimized for flexibility and ease of installation in various industrial applications.

SKU: 9392-33-33

Supplier Part Number (MPN): 9392-33-33

Alternate Part Numbers: C1FN33

Specifications

CH1 Width 33mm	CH2 Width 41mm	L1 Length 45mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M33 X 1.5	Side 1 Gender M	Side 1 Size 33mm	Side 1 Type Komatsu	Side 2 Callout M33 X 1.5	Side 2 Gender F	Side 2 Size 33mm	Side 2 Type Komatsu	Alternate Part Numbers Alternate Part Number C1FN33	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9392-33-33	Product Weight 0.95 lbs

Product Questions & Answers (3)

Question by: Brent H on May 22, 2025, 11:21 AM

Both sides are M33 x 1.5 on this one, right? Just want to make sure I ain't mixing up a male-to-female situation when I go to swap out the old fitting on the Komatsu line.

Answer by: Customer Support on May 24, 2025, 6:21 AM

Both sides do run M33 x 1.5, but they're not the same gender. One end is male and the other is female, so it's set up to extend or redirect an existing Komatsu connection rather than join two identical ends. If your current setup has a female M33 x 1.5 port, the male side threads right in, and the female end accepts the next male fitting in the line.

Question by: Rick H on Apr 22, 2025, 10:54 AM

got a tight spot on a Komatsu line, is this the 90 degree elbow with M33 x 1.5 on both ends?

Answer by: Customer Support on Apr 23, 2025, 9:13 PM

For a Komatsu-style 90° turn, this elbow is set up with an M33 x 1.5 male on one side and an M33 x 1.5 female on the other, so it’s meant to join two M33 x 1.5 Komatsu connections at a right angle.

Question by: Rick M on Oct 15, 2025, 7:06 PM

Will this fitting work with standard Komatsu hydraulic lines, or is it specific to certain models? Just want to make sure before I order.

Answer by: Customer Support on Oct 16, 2025, 8:23 PM

This elbow fitting is designed to connect specifically to Komatsu components with M33 x 1.5 connections on both ends.
