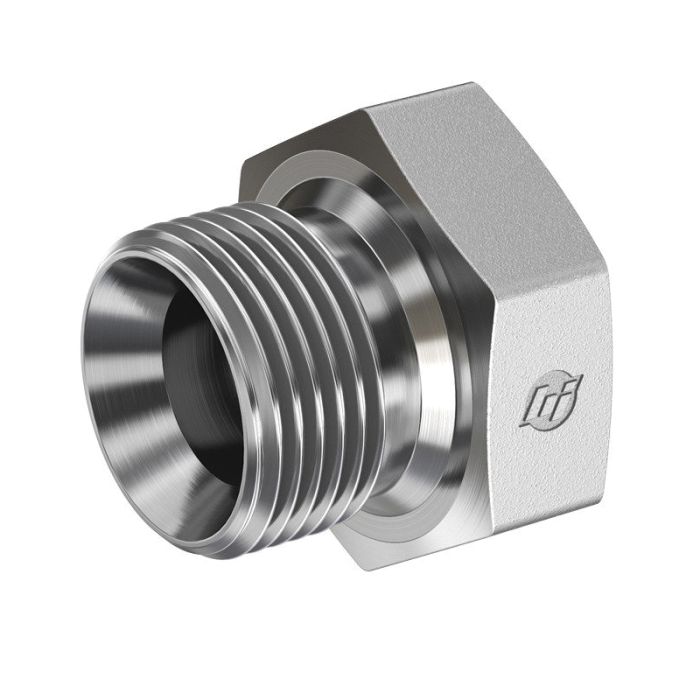

ADAPTER 16 BSPP PLUG

Description & Features

This straight steel adapter features a 1-11 Male BSPP thread with a 60-degree seat, conforming to ISO 1179, ISO 8434-6, and BS 5200 standards.

The ADAPTER 16 BSPP PLUG is part of the Brennan 9522-P series.

SKU: 9522-P-16

Supplier Part Number (MPN): 9522-P-16

Brand BRENNAN	Connection Size 1 1 in	Connection Type Male BSP	Connection Type 1 Male BSPP 60 deg Cone	Cubic Inch Space L x W x H Dimensions 3.488 cu-in	Dimensions 1.34 in L	Finish Trivalent Zinc-Plated	Fitting Type Plug	Hex Size 1.614 in	Material Steel	Material Construction AISI 12L14/1045 Steel	Series 9522-P Series	Thread B1 Drill Dimensions 22.2 mm	Thread Size 1-11

Question by: Daryl G on Nov 1, 2025, 6:45 AM

Will this plug hold up okay in hydraulic systems, or is it better for lower-pressure stuff?

Answer by: Customer Support on Nov 2, 2025, 3:23 PM

Designed to conform to ISO 1179, ISO 8434-6, and BS 5200 standards, this steel adapter plug is suitable for hydraulic applications.
