Female Jic Swivel Tee

Description & Features

This steel Adaptall Female JIC Swivel Tee features three JIC (37° flare) female swivel connections, each with a 3/4" size and 1-1/16 - 12 UN callout. The tee shape allows for branching or combining fluid flow in hydraulic systems.

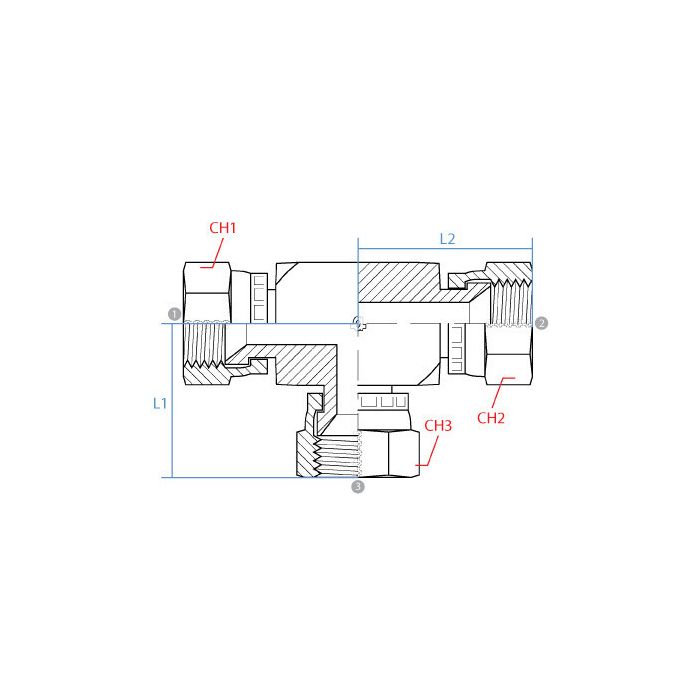

The Female Jic Swivel Tee offers versatile connection options with a Ch1 width of 27mm and a Ch2 width of 32mm. Its Adaptall L1 and L2 lengths are both 50mm, ensuring a compact and reliable connection point.

SKU: 9555-12-12-12

Supplier Part Number (MPN): 9555-12-12-12

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Size 3 3/4 in	Connection Type Female JIC Swivel	Connection Type 1 Female JIC Swivel	Connection Type 2 Female JIC Swivel	Connection Type 3 Female JIC Swivel	Dimension Standards ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 9555 Series	Thread Size 1-1/16-12

Product Questions & Answers (1)

Question by: Ralph H on Jan 28, 2026, 6:30 PM

All three ports on this thing are 3/4" JIC female swivel, right? Just want to make sure before I go cutting into my existing lines.

Answer by: Customer Support on Jan 30, 2026, 6:22 AM

All three connections are identical, 3/4" female JIC swivel with a 1-1/16-12 UN thread callout on every port. So whatever lines you're branching off of, all three sides will accept the same male JIC fitting. The swivel feature on each port also gives you some wiggle room when you're routing hoses in tight spots.
