Female Jic Swivel Tee

Description & Features

Constructed from steel, this tee-shaped hydraulic fitting provides three female JIC swivel connections, each threaded at 1-5/16-12 UN to accept 1" JIC lines. The swivel design on all three ports allows hose or tube ends to be positioned and tightened without twisting the assembly, which is particularly useful in confined or congested routing environments.

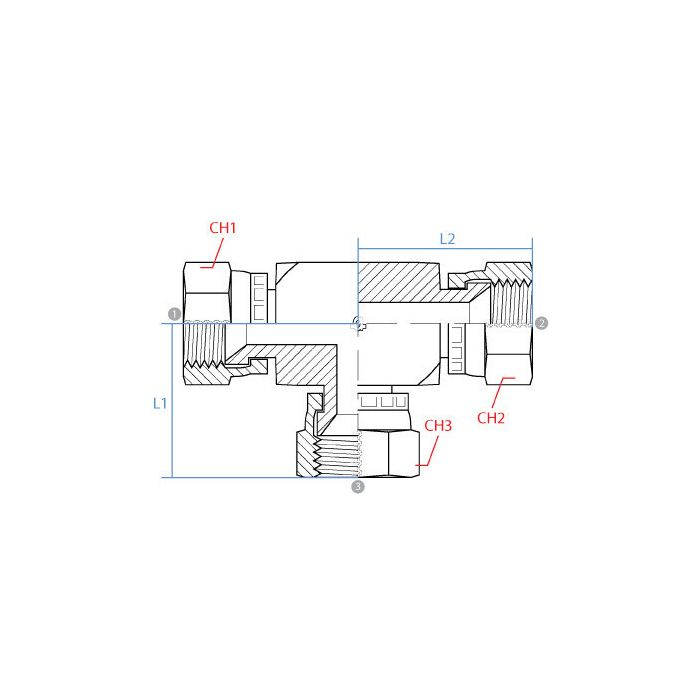

The Female Jic Swivel Tee is an Adaptall fitting, measuring 58mm along L1 and 59mm along L2, with wrench widths of 37mm and 38mm across the two callout flats. All three ports share identical thread specification and size, making this fitting well suited to branch-off configurations where a single hydraulic line must be split into two outlets of the same type and size.

SKU: 9555-16-16-16

Supplier Part Number (MPN): 9555-16-16-16

Specifications

Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female JIC Swivel	Connection Type 1 Female JIC Swivel	Connection Type 2 Female JIC Swivel	Connection Type 3 Female JIC Swivel	Dimension Standards ISO 8434-2, SAE J514	Finish Zinc-Plated	Fitting Type Tee	Material Steel	Material Construction Carbon Steel	Series 9555 Series	Thread Size 1-5/16-12

Product Questions & Answers (1)

Question by: Floyd D on Nov 19, 2025, 6:10 AM

All three ports on this thing are the same size and thread, right? Just wanna make sure before I order, got a line splittin' off into two outlets and need 'em all to match up.

Answer by: Customer Support on Nov 21, 2025, 8:11 AM

All three ports are identical. Each one is threaded at 1-5/16-12 UN and sized for 1-inch JIC lines, so you're working with the same spec across the board. That makes it a straightforward fit for a single-line branch-off into two outlets of the same type and size.
