90* Din X Male Metric Adj

Description & Features

This 90° elbow fitting is expertly designed to facilitate secure connections in hydraulic and industrial systems. Constructed from durable steel, it ensures reliability and longevity in demanding environments. The fitting features a Din Tube connection on Side 1 with a male M24 x 1.5 thread and a size of S16, while Side 2 offers a male Metric connection with an M22 x 1.5 thread size. These precise measurements and compatible male connectors make it suitable for a wide range of hydraulic applications.

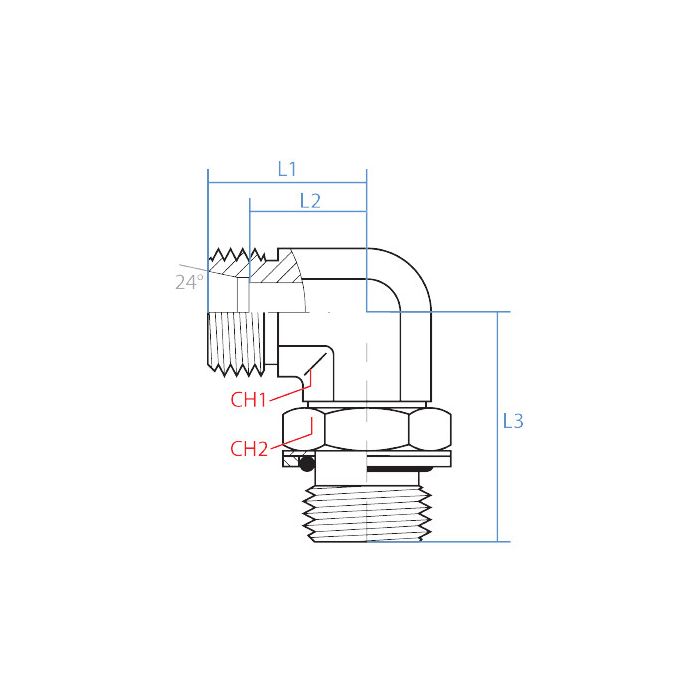

The 90* Din X Male Metric Adj fitting is engineered with thoughtful dimensions for optimal integration. It has Adaptall Ch1 and Ch2 widths of 27mm, L1 length of 33mm, L2 length of 24.5mm, and an L3 length of 47mm. This design ensures a seamless fit, reducing the risk of leaks and enhancing the efficiency of the system. The Adaptall brand is known for its quality and compatibility across various industrial setups.

SKU: 5069S-16-22

Supplier Part Number (MPN): 5069S-16-22

Specifications

CH1 Width 27mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 47mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069S-16-22	Product Weight 0.52 lbs

Product Questions & Answers (3)

Question by: Sheila K on Feb 10, 2026, 7:26 PM

what's the thread size on both ends of this fitting? got one side going to M22 and need to make sure the other end lines up right before I order

Answer by: Customer Support on Feb 12, 2026, 6:47 AM

Side 1 runs an M24 x 1.5 thread with a DIN Tube connection at size S16. Side 2 is your M22 x 1.5 Metric male connection. Both ends are male, so keep that in mind when matching up your existing ports or adapters.

Question by: Johnny R on Jun 13, 2025, 10:21 AM

What size wrench do I need for this thing? Looks like a tight fit.

Answer by: Customer Support on Jun 14, 2025, 5:48 PM

You'll need a 27mm wrench for both sides of this elbow fitting. Adaptall lists them as Ch1 and Ch2 widths, so it's the same on either end.

Question by: Denise M on Jan 17, 2026, 9:03 PM

trying to replace an elbow on my hydraulic line. are the ends on this one M24 x 1.5 on the DIN tube side and M22 x 1.5 on the other?

Answer by: Customer Support on Jan 19, 2026, 6:50 AM

Fit-wise, Side 1 is a DIN Tube connection with a male M24 x 1.5 thread in size S16, and Side 2 is a male metric connection with an M22 x 1.5 thread (22 mm size).
