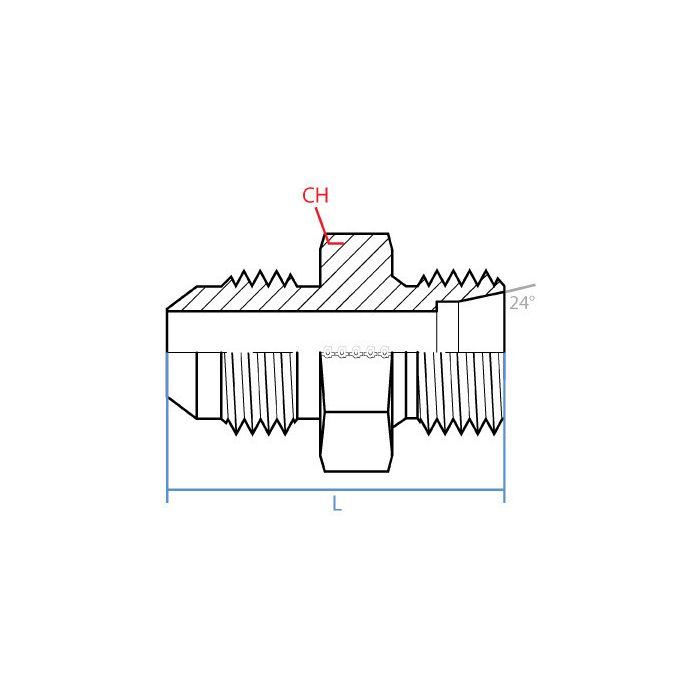

main product photo

Mjic X Male Din 2353 L

Ask A Question

Description & Features

A straight steel adapter connecting a 5/8" JIC male fitting (7/8-14 UNF thread) on one end to an M18 x 1.5 DIN 2353 L-series male tube fitting on the other, the Mjic X Male Din 2353 L is designed for use in hydraulic systems where JIC and metric DIN tube connections must be joined. The straight configuration keeps routing direct, while the 43mm body length and 24mm wrench flat accommodate standard assembly tooling.

Manufactured by Adaptall in steel, this adapter suits hydraulic circuits that combine inch-standard JIC components with metric DIN 2353 light-series tube fittings. The L12 DIN side corresponds to 18mm tube OD, making this a practical conversion point in mixed-standard hydraulic assemblies across mobile, industrial, and fluid power applications.

SKU: 9605-10-L12-18

Supplier Part Number (MPN): 9605-10-L12-18

Specifications

Connection Size 1
5/8 in
Connection Size 2
12 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
43.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
9605 Series
Thread Size
7/8-14, M18x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Connie T on Jun 24, 2025, 7:46 PM
Got a line coming off a JIC fitting that I need to tie into a metric DIN tube setup, this the kind of adapter that bridges that gap?
Answer by: Customer Support on Jun 26, 2025, 8:44 AM
That's what this one does. One end is a 5/8" JIC male with a 7/8-14 UNF thread, and the other end is an M18 x 1.5 DIN 2353 L-series male tube fitting sized for 18mm OD tube. Straight body, no angle, so your routing stays clean and direct. It's made by Adaptall in steel, and the 24mm wrench flat means you can torque it down with standard tooling without any trouble.
Question by: Wayne H on Oct 3, 2025, 10:24 AM
Will this here fitting work to hook up a JIC line to something with a DIN port? Gotta plumb up a new hydraulic circuit on the farm.
Answer by: Customer Support on Oct 5, 2025, 10:00 AM
This straight adapter is indeed designed to connect a 5/8" JIC male fitting to an M18 x 1.5 DIN 2353 L-series male tube fitting. It's made for situations where you need to join JIC and metric DIN tube connections in hydraulic systems.
