Mjic X Male Din 2353 L

Description & Features

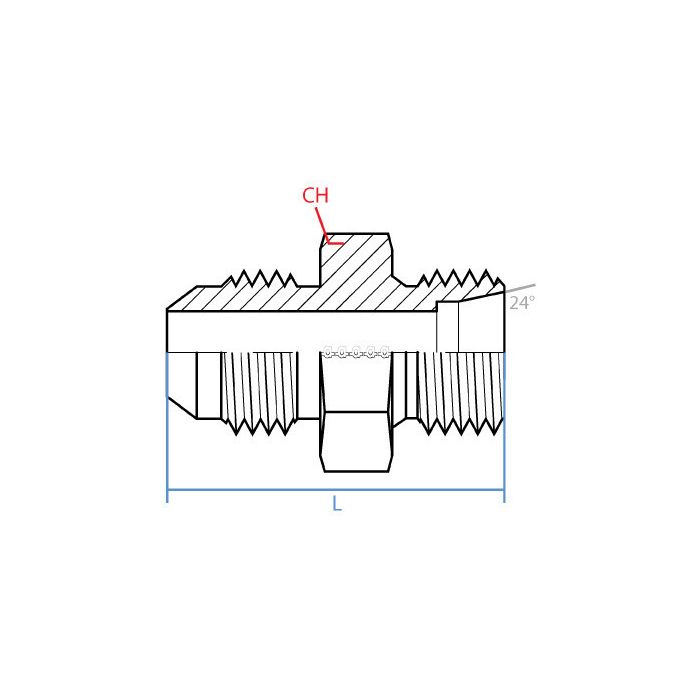

Crafted from durable steel, the Mjic X Male Din 2353 L fitting is designed for high-performance hydraulic applications. This straight connector features a Side 1 JIC male thread of 1-1/16 - 12 UN, paired with a Side 2 DIN tube connection of M30 X 2.0. With a wrench width of 38mm and a length of 55.4mm, this adapter ensures a secure and precise fit, making it ideal for industrial environments that demand reliability and efficiency.

The fitting supports a 3/4" size on Side 1 and L22 on Side 2, providing versatile compatibility with various hydraulic systems. Adaptall’s commitment to quality is evident in the robust design and meticulous engineering of this component, ensuring it meets the rigorous demands of hydraulic applications.

SKU: 9605-12-L22-30

Supplier Part Number (MPN): 9605-12-L22-30

Specifications

Connection Size 1 3/4 in	Connection Size 2 22 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 55.4 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9605 Series	Thread Size M30x2 x 1-1/16-12

Product Questions & Answers (1)

Question by: Melvin H on Jun 7, 2025, 12:51 PM

Got a hydraulic line running M30 x 2.0 DIN tube on one end and need to tie into a JIC fitting on the other side, this the right adapter for that?

Answer by: Customer Support on Jun 9, 2025, 10:13 AM

Yeah, that's exactly what this fitting is built for. One side gives you a 1-1/16-12 UN JIC male thread, which covers the 3/4" JIC side of your connection, and the other side is a male DIN tube end at M30 x 2.0, sized at L22. Straight body, no bends or offsets, so it drops right in where you need a clean inline transition between those two standards.
