Mjic X Male Din 2353L (Sealed)

Description & Features

The Mjic X Male Din 2353L (Sealed) fitting is manufactured by Adaptall America and is designed for applications requiring secure connections in metric systems to 37 flare fittings. Crafted from high-quality steel this straight fitting ensures durability and reliability in industrial environments.

Featuring a 7/16 - 20 UNF thread on Side 1 and M12 X 1.5 thread on Side 2 this connector provides a robust solution for connecting JIC and DIN tube fittings with a seamless integration.

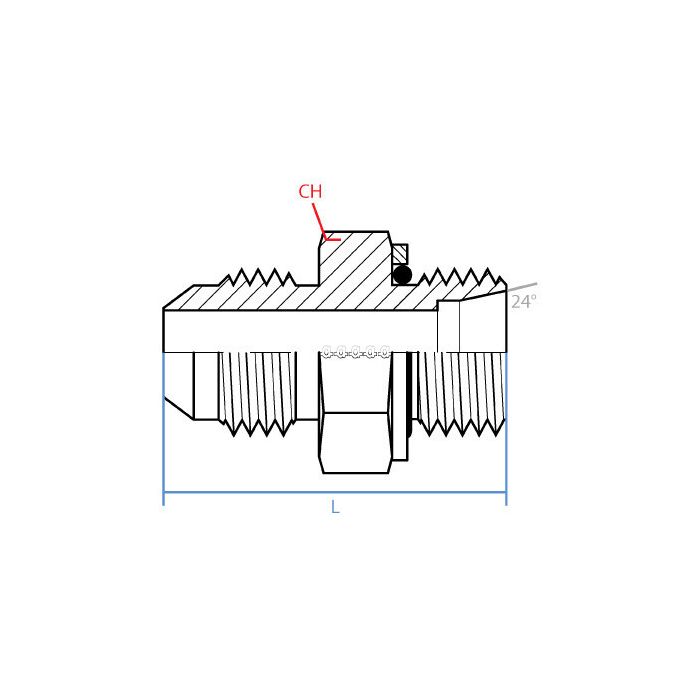

The fitting has a CH width of 17mm and an overall length of 31.9mm making it suitable for various technical setups that demand precise specifications. Packaged without any adjustable end calibration or other additional components this fitting is optimized for straightforward and efficient use.

Adaptall's engineering excellence guarantees performance in meeting industry requirements offering a sturdy no-nonsense solution for metric to flare connections.

Supplier Part Number: 9605S-04-L06-12

Specifications

CH Width 17mm	L Length 31.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339212, Alternate Part Number MINO-03671X45815	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-04-L06-12	Product Weight 0.25 lbs

Product Questions & Answers (2)

Question by: Wes H on Sep 19, 2025, 9:47 AM

What size wrench do I need for this fitting?

Answer by: Customer Support on Sep 21, 2025, 6:23 AM

You'll need a 17mm wrench for the flats on this fitting.

Question by: Lyle P on Oct 28, 2025, 3:07 PM

got a hose end with 7/16-20 jic, will this screw right into it and still give me a metric din 2353L male on the other side?

Answer by: Customer Support on Oct 29, 2025, 7:39 PM

For tying a JIC flare connection into a metric DIN tube setup, this fitting matches up as a straight adapter with a 7/16-20 UNF male JIC on Side 1 and an M12 x 1.5 male DIN 2353L (L06) on Side 2.
