Mjic X Male Din 2353L (Sealed)

Description & Features

The Mjic X Male Din 2353L (Sealed) is a reliable component specifically designed for metric to 37 flare connections. Manufactured by Adaptall America this straight adapter ensures a secure and tight seal under various conditions.

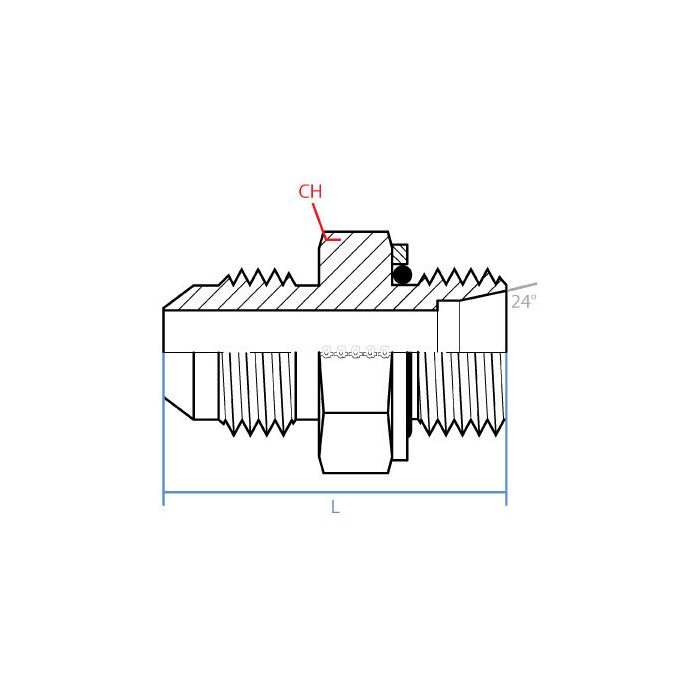

Constructed from durable steel it features a JIC male end with a 7/16 - 20 UNF thread size and a DIN tube male end with an M14 x 1.5 thread size. The 19mm width and 33.3mm length dimensions make it a versatile option for industrial applications where space and precision are crucial.

This adapter is engineered without need for additional adjustments or calibration providing straightforward integration into existing setups. It is not color-coded or machine mountable and it does not include additional components such as a check valve or diode.

Its robust construction and precise engineering make it an essential element for industries requiring high-performance metric to 37 flare fittings.

Supplier Part Number: 9605S-04-L08-14

Specifications

CH Width 19mm	L Length 33.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-04744999, Alternate Part Number MINO-03671X00045	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-04-L08-14	Product Weight 0.07 lbs

Product Questions & Answers (2)

Question by: Sheila G on May 8, 2025, 12:01 PM

got a metric tube line running M14 x 1.5 and need to tie into a 7/16-20 JIC port, this the right adapter for that?

Answer by: Customer Support on May 9, 2025, 12:57 PM

That's what this one's built for. One end is a JIC male at 7/16-20 UNF and the other is a DIN tube male at M14 x 1.5, so it bridges that metric-to-37-flare connection without any extra hardware. It's a straight adapter, steel construction, and the DIN side carries the 2353L sealed designation, so you're not relying on thread sealant to keep things tight. At 33.3mm long and 19mm across the wrench flats, it's compact enough to fit in tighter hydraulic connections runs without much fuss.

Question by: Billy B on Mar 23, 2026, 1:06 PM

Will this fitting hold up if I'm using it for hydraulics on a log splitter?

Answer by: Customer Support on Mar 25, 2026, 8:52 AM

Designed for secure connections in industrial applications, this Adaptall fitting is made from steel, so it should be durable enough for log splitter hydraulics, assuming the pressure and fluid are compatible with steel.
