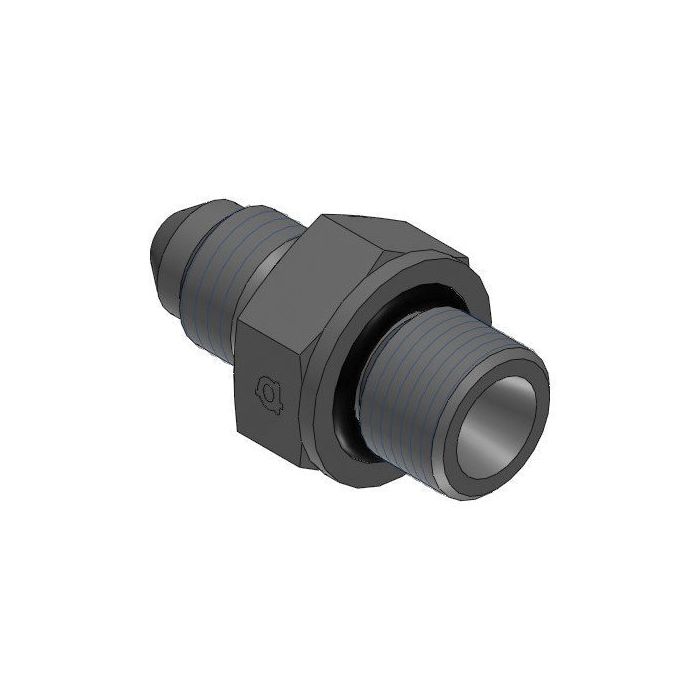

main product photo

Mjic X Male Din 2353L (Sealed)

Ask A Question

Description & Features

The Adaptall America Mjic X Male Din 2353L (Sealed) is crafted in high-quality steel and features a straight durable design suitable for industrial applications.

This male connector features a 7/16 - 20 UNF thread on the JIC side with a 1/4" size and an M12 X 1.0 metric thread on the DIN tube side with an LL08 size ensuring a secure and efficient connection.

With a compact length of 32.5mm and a width of 17mm this part is designed for efficient space utilization and ease of installation in various settings.

The product is not adjustable and does not include additional components like blades or check valves.

Supplier Part Number: 9605S-04-LL08-12

Specifications

Connection Size 1
1/4 in
Connection Size 2
LL08
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
9605S Series
Thread Size
7/16-20 x M12x1

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Gary F on Jan 3, 2026, 7:34 AM
got a line running M12 x 1.0 metric DIN tube on one end and need to tie into a JIC fitting on the other, this the right adapter for that?
Answer by: Customer Support on Jan 4, 2026, 3:49 PM
That's what this one's built for. One side is a male JIC with a 7/16-20 UNF thread at 1/4" size, and the other side is a male DIN tube connection running M12 x 1.0 in LL08 size. Steel construction, straight body, no adjustability. If both your existing fittings match those specs, this drops right in.
Question by: Todd R on Nov 24, 2025, 8:29 PM
trying to swap out a fitting, is this one the straight MJIC 1/4 to metric DIN tube deal with the M12 x 1.0 threads?
Answer by: Customer Support on Nov 26, 2025, 3:55 PM
It matches a male JIC end with 7/16-20 UNF threads in a 1/4 inch size on one side, and a male DIN 2353L tube end with M12 x 1.0 threads in LL08 size on the other. It is a straight steel connector.
