Mjic X Male Din 2353L (Sealed)

Description & Features

The Mjic X Male Din 2353L (Sealed) from Adaptall America stands out in the Metric to 37 Flare category. This component features a steel construction ensuring durability and reliability in demanding applications.

The product connects a 9/16 - 18 UNF male JIC end with a M14 X 1.5 male DIN tube end.

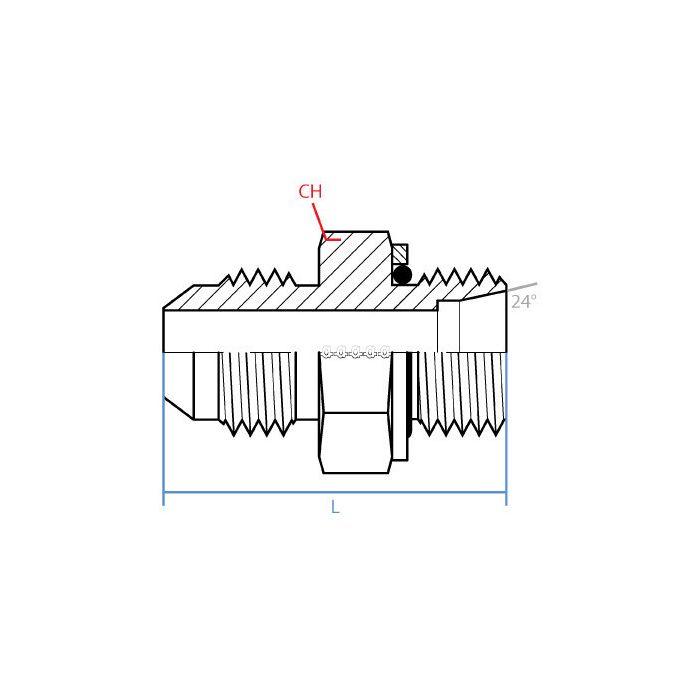

With a compact length of 33.8mm and a width of 19mm this straight fitting efficiently bridges two different thread types while maintaining a secure seal.

Its precise engineering eliminates the need for adjustment or calibration.

Both ends are male with one side having a 3/8" JIC thread and the other side featuring an L08 DIN tube thread. The design ensures a robust and leak-proof connection between components.

**Supplier Part Number**: 9605S-06-L08-14

**MPN**: 9605S-06-L08-14

Specifications

CH Width 19mm	L Length 33.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339215, Alternate Part Number MINO-03671X46999	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-06-L08-14	Product Weight 0.25 lbs

Product Questions & Answers (1)

Question by: Judy M on Apr 10, 2025, 12:41 PM

Just want to make sure before I order, this will connect a JIC fitting to a DIN tube, right?

Answer by: Customer Support on Apr 11, 2025, 5:16 PM

That's correct. This Adaptall fitting is designed to connect a 9/16 - 18 UNF male JIC end to a M14 X 1.5 male DIN tube end.
