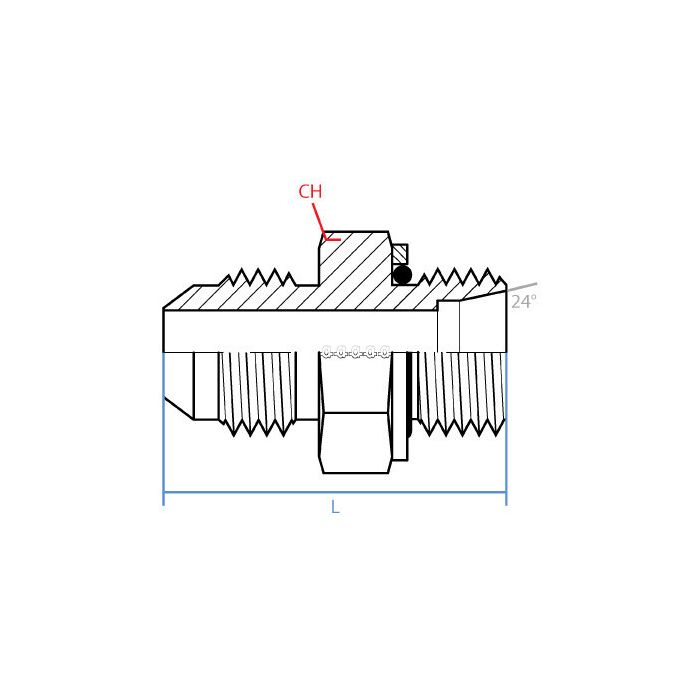

Mjic X Male Din 2353L (Sealed)

Description & Features

The Mjic X Male Din 2353L (Sealed) by Adaptall America is a reliable component designed for metric to 37 flare applications. This steel fitting features a straight shape and robust construction ensuring long-lasting performance in industrial settings.

With a 9/16 - 18 UNF thread on Side 1 and an M18 X 1.5 DIN tube on Side 2 this fitting offers excellent compatibility with various systems. The fitting measures 24mm in width and 37.5mm in length allowing for precise integrations where space is a constraint.

This fitting does not require adjustments or additional components such as a check valve or thread sealant simplifying its use in technical environments. It also features a male gender on both sides contributing to its versatile application capabilities.

Supplier Part Number: 9605S-06-L12-18

Specifications

Connection Size 1 3/8 in	Connection Size 2 12 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 35 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9605S Series	Thread Size 9/16-18 x M18x1.5

Product Questions & Answers (3)

Question by: Terry H on Nov 24, 2025, 7:47 AM

Will this fitting hold up if it's used with hydraulic fluid on a regular basis?

Answer by: Customer Support on Nov 26, 2025, 6:44 AM

This steel fitting is designed for long-lasting performance in industrial settings, so it should handle hydraulic fluid exposure well.

Question by: Clint B on Jun 27, 2025, 12:32 PM

Got a metric DIN tube connection on one end and a JIC fitting on the other side of my line, is this the adapter that bridges those two?

Answer by: Customer Support on Jun 28, 2025, 9:29 PM

That's what this one does. Side 1 is a 3/8" JIC male with a 9/16-18 UNF thread, and Side 2 is a male DIN 2353L metric tube connection sized at L12 with an M18 x 1.5 thread. So if you're tying a JIC line into a metric DIN port, this adapter handles that transition straight out of the box with no additional sealant or check valve needed.

Question by: Neal H on Dec 14, 2025, 12:28 PM

trying to swap a metric line over to JIC, is this the one with 9/16-18 on one end and M18x1.5 on the other?

Answer by: Customer Support on Dec 15, 2025, 4:28 PM

For a metric to 37 degree flare hookup, it matches that combo: Side 1 is a male JIC with 9/16-18 UNF threads (3/8 size), and Side 2 is a male DIN 2353L tube end with M18 x 1.5 threads (L12).
