Mjic X Male Din 2353L (Sealed)

Description & Features

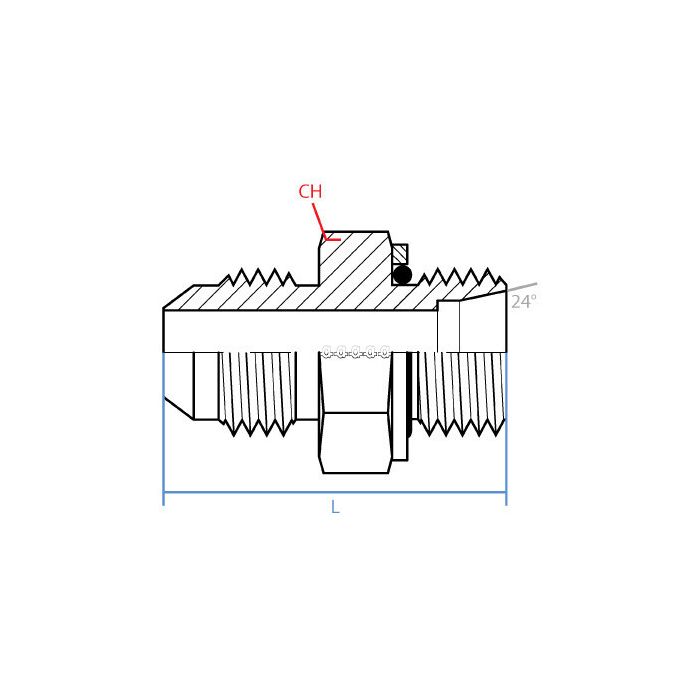

Crafted from durable steel this Adaptall America fitting features a 17mm CH width and a 33mm length for compatibility in metric to 37 flare applications. The straight shape and practical dimensions make it a reliable choice for precise industrial tasks.

Side 1 specifications include a 9/16 - 18 UNF male thread with a 3/8" Jic type ensuring dependable joining performance. On Side 2 the fitting offers an M12 X 1.0 male thread suitable for Din Tube applications specifically size LL08. Notably this product does not come with adjustable or remote control functionalities suiting straightforward use cases.

Mjic X Male Din 2353L (Sealed) is engineered to meet robust industrial standards ensuring longevity and stability. This part with the supplier part number 9605S-06-LL08-12 is designed for professional settings requiring rigid and secure connections without the need for additional elements like thread sealant or mandrels.

Supplier Part Number: 9605S-06-LL08-12

Specifications

CH Width 17mm	L Length 33mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M12 X 1.0	Side 2 Gender M	Side 2 Size LL08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022606, Alternate Part Number MINO-03671X00414	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-06-LL08-12	Product Weight 0.25 lbs

Product Questions & Answers (1)

Question by: Dustin H on Jun 14, 2025, 12:08 PM

fitting says M12 x 1.0 on one end and 9/16-18 UNF on the other -- is that right for connecting a JIC line to a DIN metric tube port?

Answer by: Customer Support on Jun 16, 2025, 11:39 AM

Yeah, that's exactly what this one does. The 9/16-18 UNF end is a 3/8" JIC male, and the other end is an M12 x 1.0 male DIN tube fitting sized for LL08 tube. So if you've got a JIC hydraulic line and need to tie into a metric DIN 2353 port, this adapter bridges that gap in a straight configuration without needing extra fittings in between.
