Mjic X Male Din 2353L (Sealed)

Description & Features

The ADAPTALL AMERICA product Mjic X Male Din 2353L (Sealed) offers a straight precise connection solution crafted from high-quality steel.

Designed with a 3/4 to 16 UNF male JIC on one side and an M18 X 1.5 male DIN tube on the opposite end this connector ensures robust performance and durability in critical industrial environments.

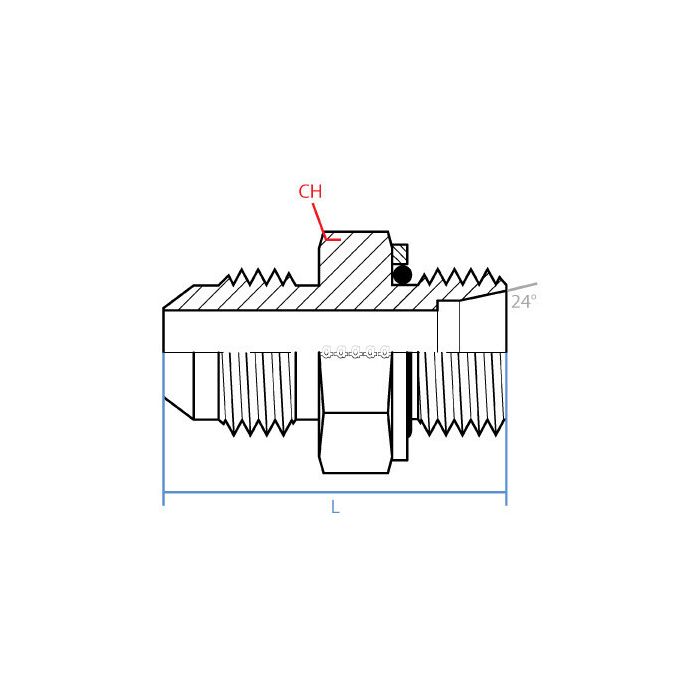

Featuring a CH width of 24mm and an overall length of 39.9mm it is a vital part engineered for reliability and efficiency without the need for adjustments or additional sealants.

With its sealed construction this product delivers a leak-resistant connection making it a preferred choice in demanding applications where secure fittings are paramount.

Supplier Part Number: 9605S-08-L12-18

Specifications

CH Width 24mm	L Length 39.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number 9605-08-L12-18, Alternate Part Number C1GB57, Alternate Part Number MI-07880833, Alternate Part Number MINO-03671X00346	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-08-L12-18	Product Weight 0.25 lbs

Product Questions & Answers (2)

Question by: Bobby B on Oct 15, 2025, 11:04 AM

Just want to make sure this will fit, I need to connect a 3/4-16 UNF JIC to an M18 X 1.5 DIN tube.

Answer by: Customer Support on Oct 16, 2025, 7:39 PM

That's what this Adaptall fitting is made for. It's a straight connector with a 3/4-16 UNF male JIC on one side and an M18 X 1.5 male DIN tube on the other.

Question by: Tony W on Sep 13, 2025, 1:39 PM

got a hose end that’s 3/4-16 UNF JIC male, will this adapter mate up to it and then go into an M18 x 1.5 DIN tube port?

Answer by: Customer Support on Sep 15, 2025, 8:45 AM

On the JIC side, it is a 3/4 to 16 UNF male JIC. The other end is an M18 x 1.5 male DIN 2353L tube connection, listed as size L12. It is a straight steel adapter with a sealed construction.
