Mjic X Male Din 2353L (Sealed)

Description & Features

Specifically designed for robust industrial applications this fitting provides reliable performance in various hydraulic systems. Crafted from high-quality steel it ensures durability and long-lasting use.

Mjic X Male Din 2353L (Sealed) offers precision connections with 3/4 - 16 UNF on one side and M22 X 1.5 on the other. This design supports a seamless interface between Jic and Din tube types facilitating secure fluid transfer.

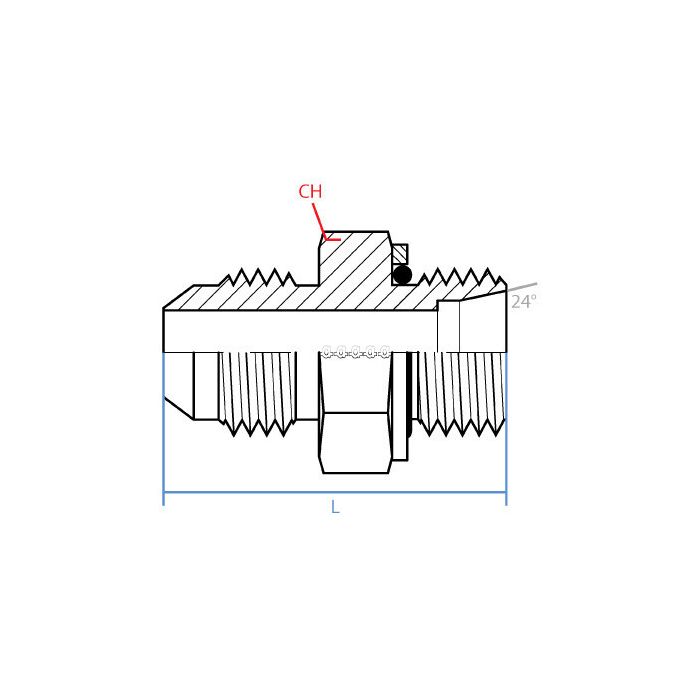

Its straight shape is optimized for straightforward integration while its dimensions include a CH width of 27mm and an L length of 41.9mm. Featuring both male sides one with a 1/2" size Jic and the other with an L15 size Din tube it covers essential requirements for accurate fittings.

Manufactured by Adaptall America this component is designed with professional engineering standards to meet rigorous industry demands. It does not include additional features such as calibration or color coding focusing solely on its primary function.

Supplier Part Number: 9605S-08-L15-22

Specifications

Connection Size 1 1/2 in	Connection Size 2 15 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 42.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9605S Series	Thread Size M22x1.5 x 3/4-16

Product Questions & Answers (2)

Question by: Travis E on Dec 2, 2025, 2:59 PM

what's the thread setup on both ends of this fitting? trying to figure out if it'll work between my JIC line and a metric DIN connection

Answer by: Customer Support on Dec 3, 2025, 8:18 PM

One end runs a 3/4-16 UNF thread, which is your standard JIC male side sized at 1/2 inch. The other end is M22 x 1.5 metric thread, fitting an L15 DIN tube connection. So yeah, this one bridges a male JIC side to a male DIN 2353L side, straight through, no bends.

Question by: Kent B on Jan 21, 2026, 2:06 PM

got a hose end that’s 3/4-16 UNF JIC on one side and a metric DIN tube on the other. is this the straight adapter for that?

Answer by: Customer Support on Jan 23, 2026, 11:39 AM

For a straight JIC to DIN tube hookup, this fitting matches 3/4-16 UNF male JIC on side 1 and M22 x 1.5 male DIN 2353L on side 2. The DIN tube size callout on it is L15, so it is meant to interface with that DIN light series tube connection.
