Mjic X Male Din 2353L (Sealed)

Description & Features

Mjic X Male Din 2353L (Sealed) manufactured by Adaptall America is a high-quality connector designed for industrial applications. This straight fitting crafted from durable steel features a male JIC thread on one end and a male DIN tube connection on the other ensuring a secure and leak-free fit.

The fitting has a side 1 callout of 7/8 - 14 UNF and side 1 size of 5/8" suitable for many industrial requirements. The opposite end side 2 has a callout of M22 X 1.5 and a size L15 making it versatile for varied connections.

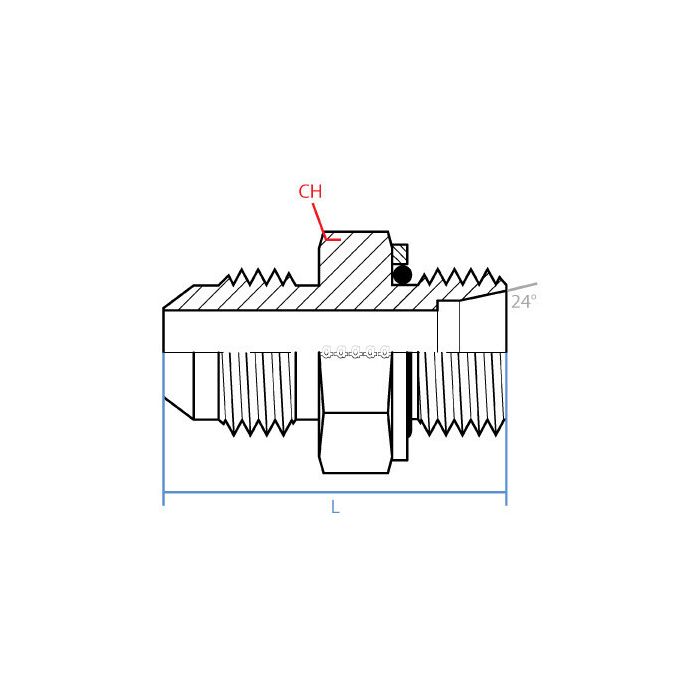

With a width of 27mm and a length of 42.9mm this fitting is compact yet robust providing reliable performance.

Engineered without adjustable or ratcheting features this product ensures a stable connection without the need for additional adjustments.

Supplier Part Number: 9605S-10-L15-22

Specifications

Connection Size 1 5/8 in	Connection Size 2 15 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 43.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9605S Series	Thread Size 7/8-14 x M22x1.5

Product Questions & Answers (3)

Question by: Phil H on Jul 5, 2025, 2:42 PM

trying to swap out an old fitting, how do i know if this one matches my threads?

Answer by: Customer Support on Jul 6, 2025, 7:24 PM

Start by matching the two ends: side 1 is a male JIC thread with a 7/8 - 14 UNF callout and a 5/8 inch size, and side 2 is a male DIN tube connection called out as M22 x 1.5 with an L15 size. If your existing part uses those same callouts on each end, this is the same style of straight connector.

Question by: Tommy H on Nov 15, 2025, 1:36 PM

trying to figure out if this'll work as a straight adapter between a JIC fitting and a DIN tube connection, am I reading that right?

Answer by: Customer Support on Nov 16, 2025, 5:47 PM

Yeah, that's exactly what it does. One end is a 7/8-14 UNF male JIC, the other is an M22 x 1.5 male DIN 2353L tube connection in size L15. Both ends are male, so you'd be threading this into female receivers on each side. Steel construction, straight profile, no swivel or adjustability built in. Pretty much a direct bridge between those two thread standards.

Question by: Janice G on Sep 4, 2025, 5:28 PM

Will this here fitting work alright for connecting a JIC fitting to a DIN tube?

Answer by: Customer Support on Sep 5, 2025, 9:36 PM

This Adaptall fitting is indeed designed to connect a male JIC fitting to a male DIN tube connection. Just make sure your sizes match up: 5/8" JIC to L15 DIN.
