Mjic X Male Din 2353L (Sealed)

Description & Features

Brand: Adaptall America.

This high-quality connector designed by Adaptall America features a robust straight configuration made from durable steel. Ideal for industrial applications this component ensures reliable long-lasting performance. The Mjic X Male Din 2353L (Sealed) is a versatile professional-grade part essential for diverse technical environments.

On one end it features a 7/8 - 14 UNF male thread with a size of 5/8 inch while the other end comprises an M26 X 1.5 male Din tube fitting size L18. This configuration offers secure and efficient connectivity in demanding settings. With a length of 48.2mm and a width of 32mm this component fits seamlessly into various machinery and systems.

Built to withstand rigorous use the Mjic X Male Din 2353L (Sealed) is a reliable choice for professionals requiring precision and durability. Its straightforward design simplifies installation and ensures minimal maintenance. This product does not include adjustable or color-coded features making it straightforward to integrate into existing setups.

Supplier Part Number: 9605S-10-L18-26.

Specifications

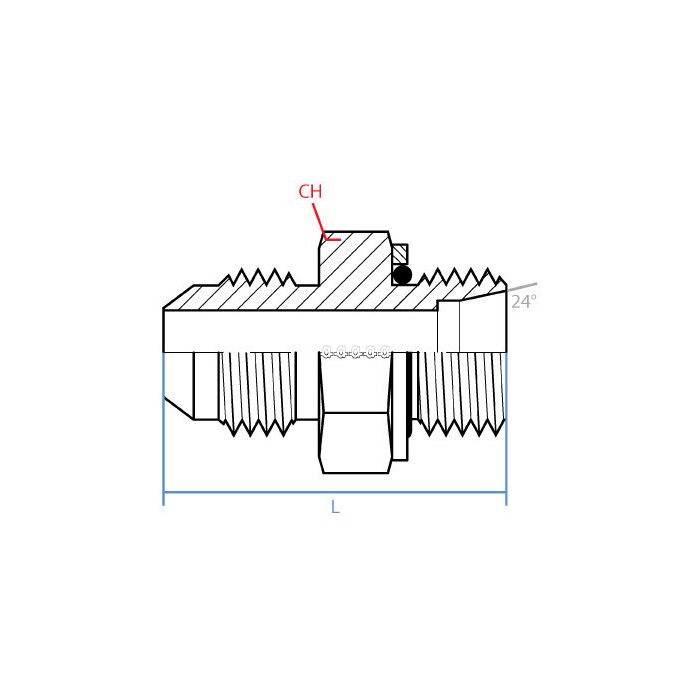

CH Width 32mm	L Length 48.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339218, Alternate Part Number MINO-03671X46153	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-10-L18-26	Product Weight 0.25 lbs

Product Questions & Answers (2)

Question by: Harvey W on Nov 16, 2025, 7:23 PM

What thread types are on each end of this fitting, and how long is it overall?

Answer by: Customer Support on Nov 18, 2025, 6:12 AM

One end runs a 7/8-14 UNF male JIC thread, sized for a 5/8 inch connection. The other end is an M26 x 1.5 male DIN tube fitting, rated as an L18 size per the DIN 2353L standard. Overall length comes in at 48.2mm, with a 32mm width across the fitting body. Both ends are male, so keep that in mind when planning your connections.

Question by: Billy A on Sep 15, 2025, 11:06 AM

got a hose end that’s 7/8-14 JIC male, will this screw right onto it and give me an M26x1.5 DIN L18 male on the other side?

Answer by: Customer Support on Sep 17, 2025, 10:20 AM

On the JIC side, it is a 7/8-14 UNF male thread (JIC #10, 5/8 inch size). The other end is a male DIN 2353 L fitting with an M26 x 1.5 thread for tube size L18, so it is set up to adapt between those two male ends.
