Mjic X Male Din 2353L (Sealed)

Description & Features

The Mjic X Male Din 2353L (Sealed) is an industrial-grade connector designed for reliable fluid transfer systems. With a robust construction it features a straight steel configuration.

Side 1 of the component fits a 1-1/16 - 12 UN thread making it compatible with a 3/4" Male Jic connection. On the other end Side 2 accommodates an M22 X 1.5 thread aligned with a Male Din Tube size L15 adhering to the Din 2353L standard.

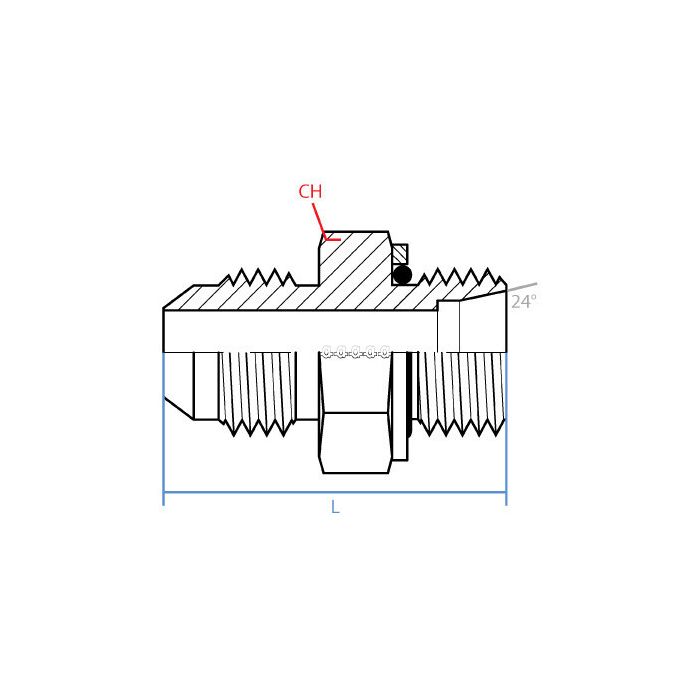

Boasting a width of 30mm and a length of 47mm this fitting ensures a secure and tight seal eliminating the need for additional thread sealants.

Supplier Part Number: 9605S-12-L15-22

Specifications

CH Width 30mm	L Length 47mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-05086228, Alternate Part Number MINO-03671X00091	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-12-L15-22	Product Weight 0.26 lbs

Product Questions & Answers (3)

Question by: Bonnie W on May 28, 2025, 6:30 PM

What size is the JIC end on this fitting?

Answer by: Customer Support on May 30, 2025, 6:35 AM

The JIC side of this Adaptall fitting is a 3/4" Male JIC, designed to fit a 1-1/16 - 12 UN thread.

Question by: Earl E on Apr 18, 2025, 1:08 PM

Got a 3/4 JIC male end on my hydraulic line and need to tie into a metric DIN fitting on the other side, this the right adapter for that?

Answer by: Customer Support on Apr 20, 2025, 6:21 AM

That's what this one's built for. Side 1 is a 3/4" Male JIC with a 1-1/16 - 12 UN thread, and Side 2 is a Male DIN tube connection, L15 size, M22 x 1.5 thread, meeting the DIN 2353L standard. Straight configuration, so there's no angle to account for. If your line ends are already in those sizes, this adapter bridges them directly without needing any extra sealant on the threads.

Question by: Ricky E on Mar 14, 2026, 8:22 PM

trying to match up a fitting here, is this the one that goes from 3/4 MJIC to M22 x 1.5 DIN 2353L L15?

Answer by: Customer Support on Mar 15, 2026, 8:26 PM

For fitment, it is a straight steel adapter with a 1-1/16 - 12 UN male JIC end (3/4 MJIC) on Side 1 and an M22 x 1.5 male DIN tube end for L15 per DIN 2353L on Side 2.
