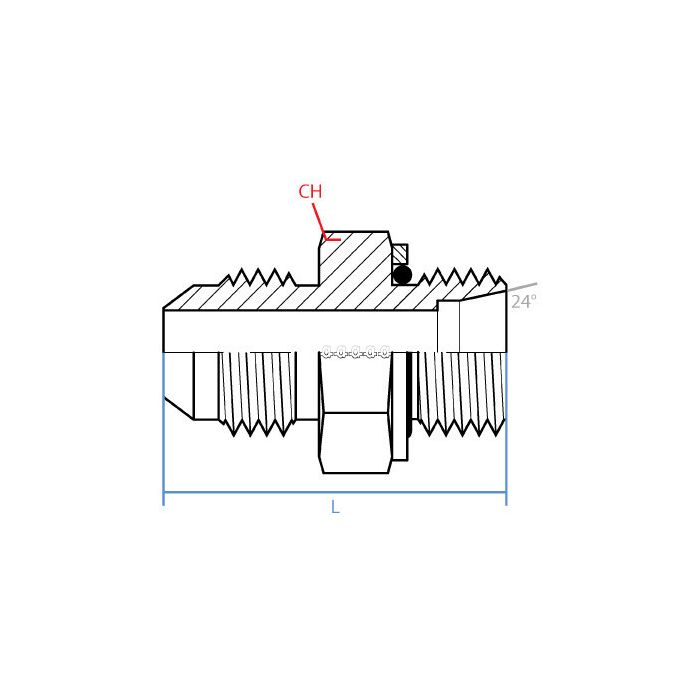

Mjic X Male Din 2353L (Sealed)

Description & Features

This product is constructed from high-quality steel ensuring robustness and durability in various industrial applications. Measuring 36mm in width and 51.8mm in length it features a straight shape that allows seamless integration with existing systems. The Mjic X Male Din 2353L (Sealed) connector offers a secure male-to-male connection. It boasts a 1-1/16 - 12 UN thread on Side 1 and an M26 X 1.5 Din Tube thread on Side 2 designated for 3/4" and L18 sizes respectively. This standardized configuration facilitates versatile connectivity options. Produced by Adaptall America this product delivers reliable performance without the need for additional adjustments or calibrations. The absence of an adjustable end and other components like valves or switches simplifies its use.

Supplier Part Number: 9605S-12-L18-26

Specifications

Connection Size 1 3/4 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 51 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 36 mm	Material Steel	Material Construction Carbon Steel	Series 9605S Series	Thread Size 1-1/16-12 x M26x1.5

Product Questions & Answers (3)

Question by: Joyce M on May 17, 2025, 11:05 AM

trying to hook a 1-1/16 - 12 UN JIC line over to a DIN tube, is this the right adapter?

Answer by: Customer Support on May 18, 2025, 9:21 PM

For that kind of crossover, it matches up as a straight male to male adapter with a 1-1/16 - 12 UN male JIC on one side and an M26 x 1.5 male DIN tube end on the other, sized for L18.

Question by: Melvin W on Dec 6, 2025, 7:36 PM

What kind of stuff is this fitting made of?

Answer by: Customer Support on Dec 8, 2025, 6:54 PM

It's made from steel, so it should hold up well in most industrial setups.

Question by: Rod S on Jul 31, 2025, 6:24 AM

what's the thread situation on both ends of this fitting? trying to figure out if it'll work between a JIC line and a metric DIN port

Answer by: Customer Support on Aug 2, 2025, 6:56 AM

One end is a 1-1/16-12 UN male JIC thread, sized for 3/4" line. The other end is an M26 x 1.5 male DIN tube thread, which is the L18 size under the DIN 2353L standard. So yeah, it bridges a standard JIC fitting on one side to a metric DIN connection on the other, all in one straight piece with no adapters stacked in between.
