Mjic X Male Din 2353L (Sealed)

Ask A Question

Description & Features

The Mjic X Male Din 2353L (Sealed) by Adaptall America is expertly designed to meet the demands of industry-specific applications. This straight steel adapter combines a 1-1/16 - 12 UN male Jic connection on Side 1 with an M30 x 2.0 male Din tube connection on Side 2 ensuring compatibility and reliability in metric to 37 flare systems.

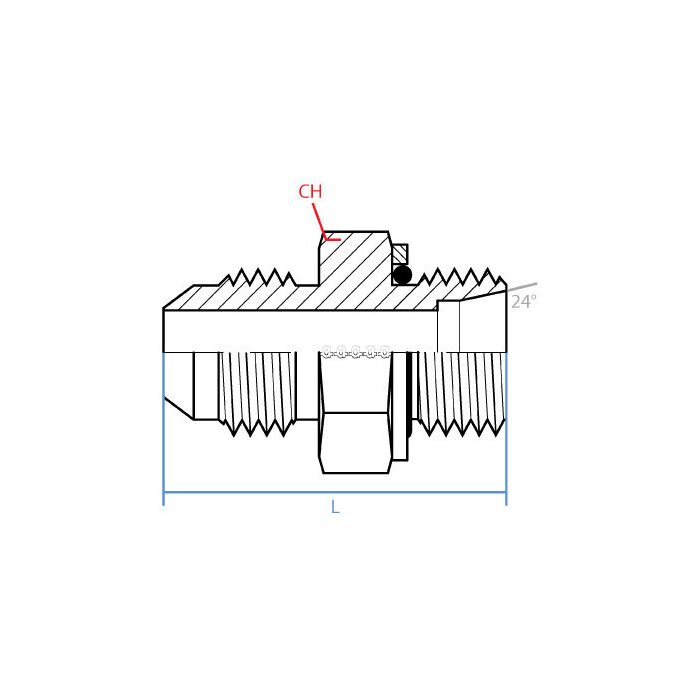

Precisely engineered this product boasts a CH width of 36mm and an overall L length of 51.8mm. The robust steel construction enhances durability while delivering dependable performance under varying conditions.

Ensuring seamless integration the unit is meticulously constructed without adjustable ends or additional requirements such as check valves or thread sealants. The product number 9605S-12-L22-30 signifies its unique specifications and compatibility.

This technical fitting is an essential component for streamlined and efficient solutions in demanding industrial environments.

MPN: 9605S-12-L22-30

Specifications

Connection Size 1
3/4 in
Connection Size 2
22 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
51.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
36 mm
Material
Steel
Material Construction
Carbon Steel
Series
9605S Series
Thread Size
M30x2 x 1-1/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Tommy E on Jul 30, 2025, 11:22 AM
trying to mate up a 3/4 JIC male fitting to a metric DIN tube connection on some hydraulic equipment we got in, would this adapter do the trick?
Answer by: Customer Support on Jul 31, 2025, 9:37 PM
That's exactly what this fitting is built for. Side 1 is a 1-1/16-12 UN male JIC, which covers your 3/4" JIC connection, and Side 2 is an M30 x 2.0 male DIN tube fitting sized at L22. So yeah, it bridges that metric-to-37-degree flare gap cleanly. Steel construction, straight configuration, no adjustable ends to fuss with.
