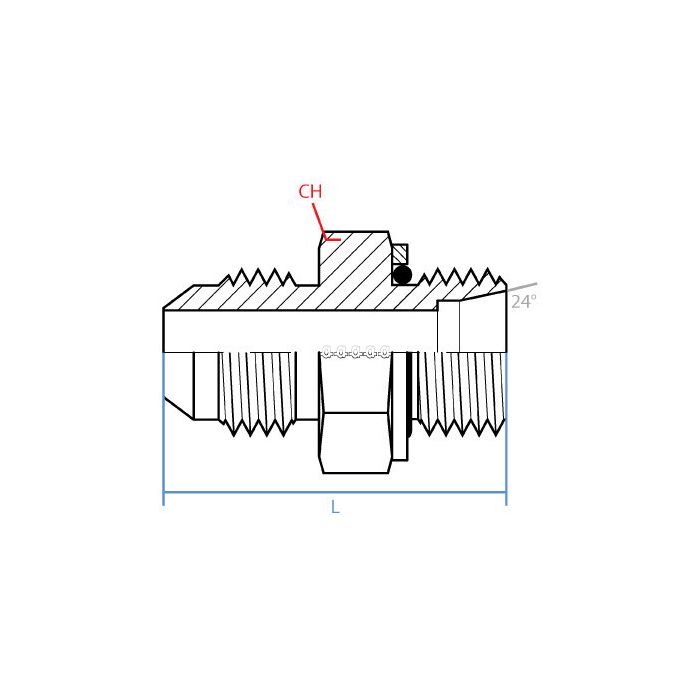

main product photo

Mjic X Male Din 2353L (Sealed)

Ask A Question

Description & Features

Manufactured by Adaptall America the Mjic X Male Din 2353L (Sealed) is engineered for robust industrial applications. This steel adapter features a straight shape with a 1-5/16 - 12 UN male JIC connection on one end and an M36 X 2.0 male Din Tube connection on the other. It is designed to meet stringent industry standards ensuring reliable performance in demanding conditions.

The Mjic X Male Din 2353L (Sealed) boasts a CH width of 41mm and an L length of 53.3mm making it suitable for a variety of configurations. The adapter is not adjustable and does not include built-in components such as valves or seals simplifying its integration into existing frameworks.

MPN: 9605S-16-L28-36

Supplier Part Number: 9605S-16-L28-36

Specifications

Connection Size 1
1 in
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
54 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9605S Series
Thread Size
1-5/16-12 x M36x2

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Earl F on Feb 15, 2026, 7:56 AM
What exactly is the thread setup on both ends of this adapter? Got a metric DIN line on one side and need to make sure the other end matches up with my JIC fitting before I order.
Answer by: Customer Support on Feb 17, 2026, 6:57 AM
One end is a 1-5/16 - 12 UN male JIC connection, sized at 1 inch. The other end is an M36 X 2.0 male DIN tube connection, sized at L28. Both ends are male, so you'll need female counterparts on each side of whatever assembly you're building. The overall length runs 53.3mm with a 41mm wrench width, and the whole thing is straight, no angle.
Question by: Ralph P on Sep 29, 2025, 6:35 AM
i’ve got a hose end that’s 1-5/16 - 12 UN JIC male, will this adapter match up on that side?
Answer by: Customer Support on Oct 1, 2025, 8:39 AM
On the JIC end, it’s a 1-5/16 - 12 UN male JIC connection (listed as 1 inch size), so it matches fittings that call for that exact JIC thread and gender.
