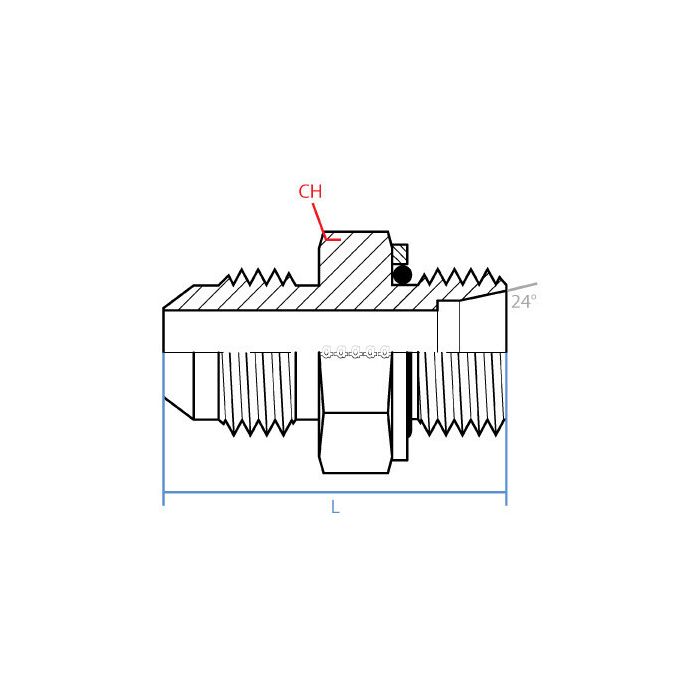

Mjic X Male Din 2353L (Sealed)

Description & Features

This product made from durable steel features a straight shape with a 55mm width and 60.4mm length. Designed without calibration or color coding it ensures reliable performance in industrial settings.

The first side of this item is a JIC type with a 1-5/8 - 12 UN thread callout and the second side is a DIN tube type with an M45 X 2.0 thread callout. Both sides are male with respective sizes of 1-1/4" and L35.

Manufactured by Adaptall America it offers a seamless connection for specific industrial applications without adjustable or ratcheting components. Unlike some other models it does not include a check valve or any electrical features.

Not requiring a mandrel machine mountable parts or a remote control this component is designed for straightforward integration into compatible systems. No battery or case is included.

MPN: 9605S-20-L35-45

Supplier Part Number: 9605S-20-L35-45

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 35 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 60 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 55 mm	Material Steel	Material Construction Carbon Steel	Series 9605S Series	Thread Size 1-5/8-12 x M45x2

Product Questions & Answers (3)

Question by: Eddie A on Oct 17, 2025, 8:59 AM

What kind of steel is this made out of? Just curious about its durability for heavy use.

Answer by: Customer Support on Oct 19, 2025, 6:00 AM

It's constructed from durable steel, so it should hold up well in most industrial applications.

Question by: Troy P on Nov 21, 2025, 11:23 AM

What exactly are the two thread types on this fitting, and what sizes are we talkin about?

Answer by: Customer Support on Nov 23, 2025, 6:17 AM

One end is a male JIC with a 1-5/8 - 12 UN thread, which corresponds to a 1-1/4 inch JIC size. The other end is a male DIN 2353L tube fitting with an M45 X 2.0 metric thread, sized at L35. Both ends are male, so keep that in mind when planning your connection setup.

Question by: Rusty M on Sep 13, 2025, 11:52 AM

trying to swap a fitting out, is this one the straight mjic to male din 2353L sealed adapter with the 1-5/8-12 on one side?

Answer by: Customer Support on Sep 15, 2025, 7:57 AM

For a straight adapter that goes from a male JIC thread to a male DIN 2353L metric tube thread, it matches those callouts: Side 1 is JIC male with 1-5/8 - 12 UN and a 1-1/4 inch size, and Side 2 is DIN tube male with M45 x 2.0 and size L35.
