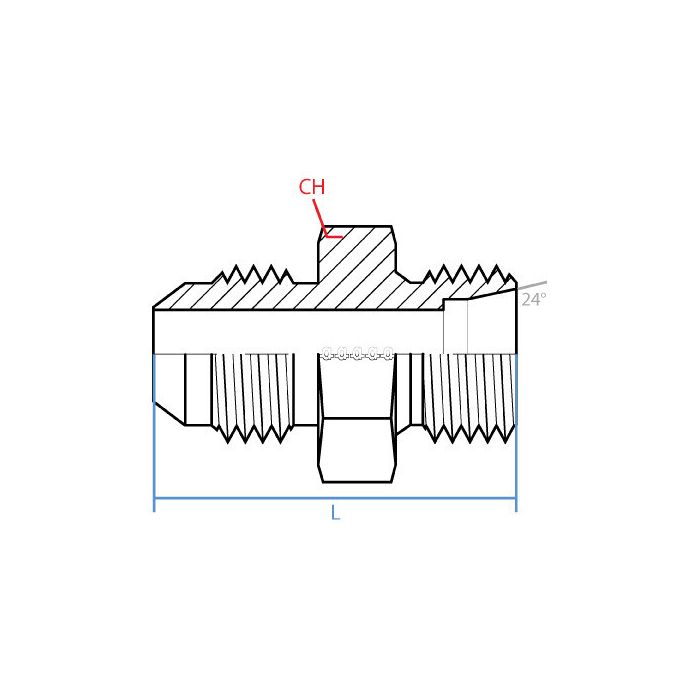

main product photo

Mjic X Male Din Tube Only

Ask A Question

Description & Features

A straight steel adapter connecting a 1/4" Male JIC (7/16-20 UNF) fitting on one end to an M16 x 1.5 Male Din Tube on the other, the Mjic X Male Din Tube Only is designed for hydraulic lines where JIC and DIN tube connections must be joined in a single inline component. The straight configuration keeps routing straightforward, and the steel construction suits demanding hydraulic service environments.

Manufactured by Adaptall, this fitting measures 33.8mm in length with a 22mm CH width. The S08 DIN tube side accommodates standard metric tube sizing, while the 7/16-20 UNF JIC thread provides reliable sealing at the opposing port. This combination is commonly found in mobile and industrial hydraulic circuits where mixed connection standards are present.

SKU: 9606-04-S08-16

Supplier Part Number (MPN): 9606-04-S08-16

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
8 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
33.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9606 Series
Thread Size
7/16-20 x M16x1.5

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Hex Size Price Action
Mjic X Male Din 2353 S

9606-04-S06-14

1/4 in

6 mm

M14x1.5 x 7/16-20

19 mm

Mjic X Male Din 2353 S

9606-06-S08-16

3/8 in

8 mm

9/16-18 x M16x1.5

Mjic X Male Din Tube Only

9606-06-S10-18

3/8 in

10 mm

9/16-18 x M18x1.5

24 mm

Mjic X Male Din 2353 S

9606-08-S10-18

1/2 in

10 mm

M18x1.5 x 3/4-16

24 mm

Mjic X Male Din 2353 S

9606-08-S12-20

1/2 in

12 mm

M20x1.5 x 3/4-16

Mjic X Male Din Tube Only

9606-08-S14-22

1/2 in

14 mm

M22x1.5 x 3/4-16

24 mm

Mjic X Male Din Tube Only

9606-08-S16-24

1/2 in

S16

M24x1.5 x 3/4-16

24 mm

Mjic X Male Din 2353 S

9606-10-S12-20

5/8 in

12 mm

7/8-14 x M20x1.5

27 mm

Steel Adapter, 7/8-14 Male JIC 37 deg Flare To M24 x 1.5 Male Metric Dual Purpose High Pressure S Series, Straight

9606-10-S16-24 Steel Male JIC To Dual Metric Adapter

5/8 in

S16

7/8-14, M24x1.5

32 mm

Mjic X Male Din 2353 S

9606-12-S16-24

3/4 in

S16

1-1/16-12 x M24x1.5

32 mm

Mjic X Male Din Tube Only

9606-12-S20-30

3/4 in

20 mm

M30x2 x 1-1/16-12

Mjic X Male Din 2353 S

9606-16-S25-36

1 in

S25

1-5/16-12 x M36x2

41 mm

Mjic X Male Din 2353 S

9606-16-S30-42

1 in

S30

1-5/16-12 x M42x2

ADAPTALL MJIC X MALE METRIC DIN 2353 S

9606-20-S30-42

1-1/4 in

S30

1-5/8-12, M42x2

Mjic X Male Din 2353 S

9606-20-S38-52

1-1/4 in

38S

1-5/8-12 x M52x2

Mjic X Male Din 2353 S

9606-24-S38-52

1-1/2 in

38S

1-7/8-12 x M52x2

Product Questions & Answers (1)

Question by: Freddie M on Oct 7, 2025, 9:22 AM
Got a machine running JIC lines on one side and metric DIN tube fittings on the other, does this adapter go straight between the two without needing extra pieces?
Answer by: Customer Support on Oct 8, 2025, 9:19 PM
That's what this one's built for. One end is a 1/4" Male JIC with a 7/16-20 UNF thread, and the other is an M16 x 1.5 Male DIN Tube in S08 sizing. It's a single inline piece, straight configuration, so there's no need for additional couplers or adapters between the two connection types. Steel construction holds up in standard hydraulic service without any fuss.
