Mjic X Male Din 2353 S

Description & Features

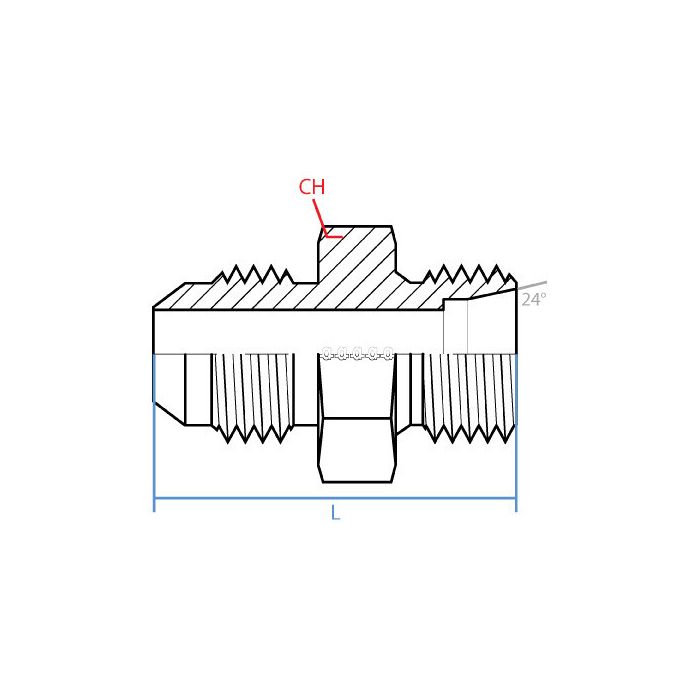

A straight steel hydraulic adapter designed to connect a 1/2" Male JIC (3/4–16 UNF) fitting to an M18 x 1.5 Male DIN 2353 S10 tube end, the Mjic X Male Din 2353 S bridges two common hydraulic connection standards in a single compact body. With an overall length of 40.3mm and a 24mm wrench flat, it is sized for straightforward installation in confined spaces where thread alignment matters.

Constructed from steel, this Adaptall adapter is suited for use in hydraulic circuits where JIC and DIN metric tube fittings must be joined without intermediate components. The straight configuration keeps routing clean and minimizes potential leak points at the connection interface.

SKU: 9606-08-S10-18

Supplier Part Number (MPN): 9606-08-S10-18

Specifications

Connection Size 1 1/2 in	Connection Size 2 10 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514	Dimensions 40.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9606 Series	Thread Size M18x1.5 x 3/4-16

Product Questions & Answers (1)

Question by: Ross M on Nov 6, 2025, 11:12 AM

got a hose end thats 1/2 jic, will this adapter screw right onto it and give me an m18 x 1.5 din end?

Answer by: Customer Support on Nov 8, 2025, 6:03 AM

For a 1/2 inch Male JIC connection with 3/4 to 16 UNF threads, this adapter mates that to an M18 x 1.5 Male DIN 2353 S10 tube end. Both sides on this part are male, so it’s meant to thread into matching female ports or nuts on each side.
