Mjic X Male Din Tube Only

Description & Features

A straight steel hydraulic adapter connecting a 1/2" Male JIC (3/4-16 UNF) on one end to a Male DIN Tube S16 (M24 x 1.5) on the other, the Mjic X Male Din Tube Only is manufactured by Adaptall for reliable performance in demanding hydraulic systems. The straight configuration and steel construction make it well suited for inline connections where both JIC and DIN tube fittings are present in the same circuit.

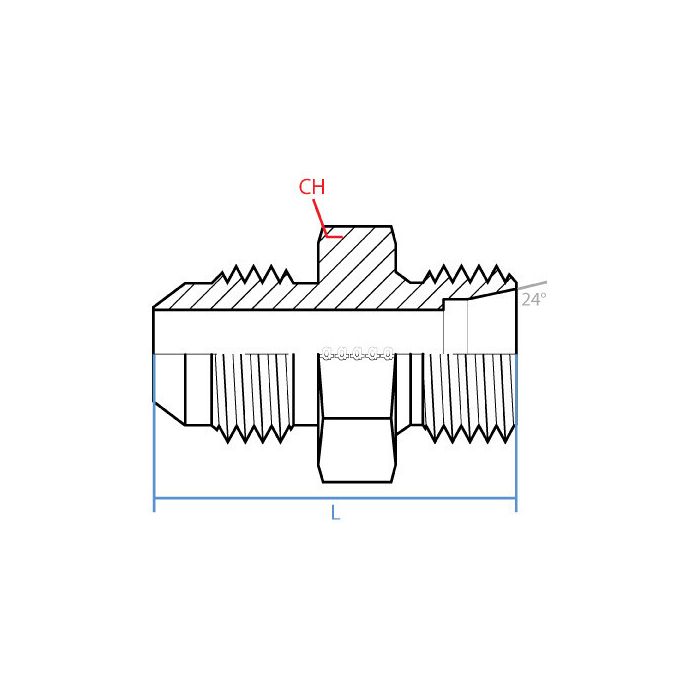

With an overall length of 42.8mm and a wrench width of 32mm, this adapter is compact enough for installations where space is a consideration. Both connection ends are male, making it appropriate for joining to female-ported components on either side. The M24 x 1.5 DIN tube side accommodates S16 tube sizing, while the JIC side conforms to the standard 3/4-16 UNF thread specification.

SKU: 9606-08-S16-24

Supplier Part Number (MPN): 9606-08-S16-24

Specifications

Connection Size 1 1/2 in	Connection Size 2 S16	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514	Dimensions 43 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9606 Series	Thread Size M24x1.5 x 3/4-16

Product Questions & Answers (1)

Question by: Rusty C on Mar 21, 2026, 1:18 PM

Would this here fitting be alright for connecting up a JIC hose to a DIN tube setup?

Answer by: Customer Support on Mar 22, 2026, 5:32 PM

Yes sir, this Adaptall adapter's got you covered for that. It's made to go straight from a 1/2" Male JIC to a Male DIN Tube S16, so it'll do just what you need.
