Mjic X Male Din 2353 S

Description & Features

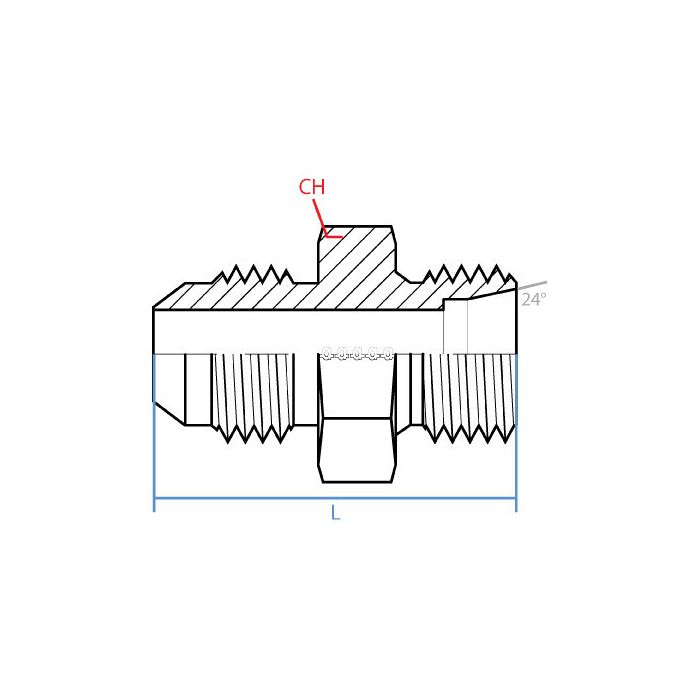

A straight steel adapter connecting a 3/4" Male JIC (1-1/16-12 UN) fitting on one end to an S16 Male Din Tube (M24 x 1.5) on the other, the Mjic X Male Din 2353 S is designed for hydraulic systems requiring a reliable transition between JIC and DIN 2353 metric tube connections. The straight configuration keeps routing straightforward where space and alignment allow.

Manufactured by Adaptall in steel, this adapter measures 48.9mm in length with a 32mm wrench flat width, making it compatible with standard industrial tooling. The male-to-male configuration suits direct inline connections without the need for additional fittings. It is well suited for use in mobile hydraulics, industrial machinery, and fluid power assemblies where JIC and DIN 2353 standards intersect.

SKU: 9606-12-S16-24

Supplier Part Number (MPN): 9606-12-S16-24

Specifications

Additional Information Heavy-Duty	Connection Size 1 3/4 in	Connection Size 2 S16	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male DIN 24 deg Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 49 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 32 mm	Material Steel	Material Construction Carbon Steel	Series 9606 Series	Thread Size 1-1/16-12 x M24x1.5

Product Questions & Answers (2)

Question by: Neal T on Jun 19, 2025, 3:04 PM

got a hose end that’s 3/4 JIC male, and my block takes an S16 DIN tube thread. is this the straight adapter for that?

Answer by: Customer Support on Jun 20, 2025, 7:42 PM

For tying those two standards together, yes. One side is a 3/4 inch Male JIC with 1-1/16-12 UN threads, and the other side is an S16 Male DIN 2353 tube connection with M24 x 1.5 threads, in a straight male-to-male layout.

Question by: Phil A on Mar 14, 2026, 9:46 PM

got a machine here that runs JIC on the hydraulic lines but the manifold block we're swapping in uses DIN 2353 metric ports, would this adapter bridge that gap straight inline without needing extra fittings in between?

Answer by: Customer Support on Mar 16, 2026, 4:37 PM

That's exactly the kind of situation this fitting handles. One end is a 3/4" Male JIC with a 1-1/16-12 UN thread, and the other is an S16 Male DIN 2353 metric tube connection at M24 x 1.5. The straight configuration lets you run it inline without adding elbows or extra couplers, so if your routing allows for a straight shot between the two connection points, this should bolt right in without complication.
