Mjic X Male Din 2353 S

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Adaptall adapter connects a 1-5/16-12 UN male JIC fitting on one end to an M36 x 2.0 male DIN tube fitting on the other. The JIC side accommodates a 1-inch nominal size, while the DIN side is rated for an S25 tube series, making this adapter well suited for joining JIC-threaded hydraulic lines to DIN 2353 metric tube connections in mixed-standard hydraulic systems.

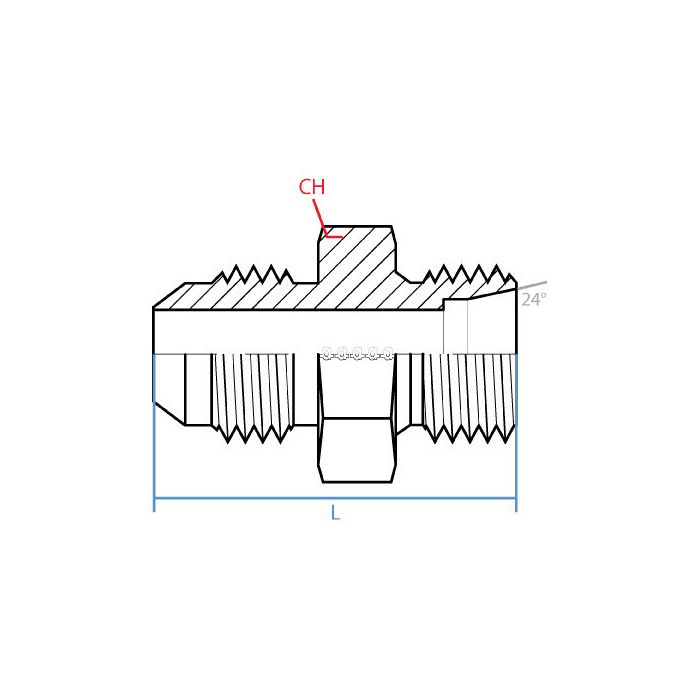

The Mjic X Male Din 2353 S measures 56.8mm in overall length with a 41mm wrench width, providing adequate tool engagement during installation. Both threaded ends are male, and the steel construction suits the demanding pressure and temperature conditions common in industrial hydraulic circuits.

SKU: 9606-16-S25-36

Supplier Part Number (MPN): 9606-16-S25-36

Specifications

Connection Size 1
1 in
Connection Size 2
S25
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
56.8 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9606 Series
Thread Size
1-5/16-12 x M36x2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Sheila O on Nov 22, 2025, 7:57 PM
Got a hydraulic line running a 1-inch JIC fitting that needs to tie into a metric DIN tube connection, this adapter do that job?
Answer by: Customer Support on Nov 24, 2025, 10:41 AM
That's what this one's built for. One end is a 1-5/16-12 UN male JIC thread, sized for a 1-inch nominal line. The other end is an M36 x 2.0 male DIN thread rated for the S25 tube series under DIN 2353. Both ends are male, so you'd need female counterparts on each side of your existing connections. Steel construction handles the pressure and temperature demands you'd expect in an industrial hydraulic circuit without any fuss.
