Mjic X Male Din 2353 S

Description & Features

Crafted from durable steel, the Mjic X Male Din 2353 S adapter is designed to ensure reliable connections in hydraulic systems. Featuring a straight shape, this adapter integrates a 1-5/16 - 12 UN JIC male thread on one side and an M42 X 2.0 DIN Tube male thread on the other, offering versatility in connecting various components. With a width of 51mm and a length of 60.2mm, it is engineered for precision and robustness in demanding industrial environments.

The Mjic X Male Din 2353 S is an essential component for applications where high-performance and secure fittings are critical. Its compatibility with Adaptall systems highlights its adaptability and efficiency in maintaining seamless fluid transfer. Trust in its reliable construction for optimal performance in complex hydraulic configurations.

SKU: 9606-16-S30-42

Supplier Part Number (MPN): 9606-16-S30-42

Specifications

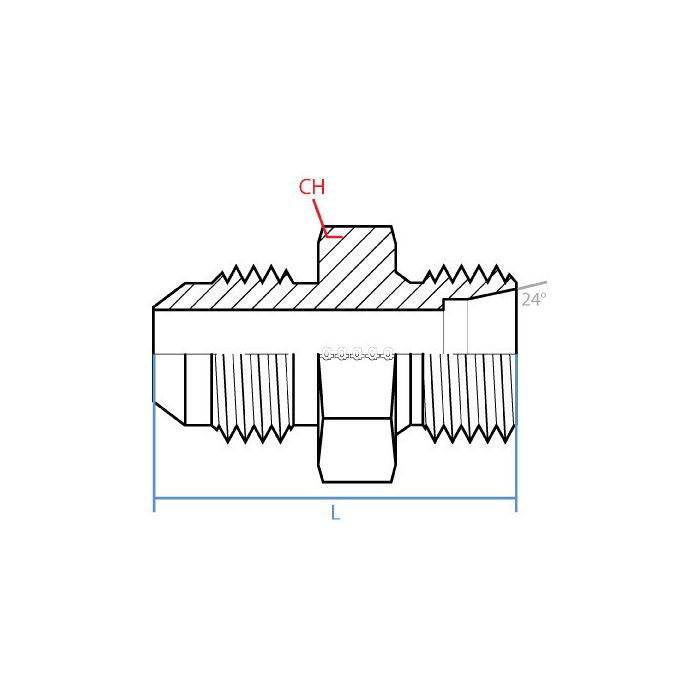

CH Width 51mm	L Length 60.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M42 X 2.0	Side 2 Gender M	Side 2 Size S30	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-16-S30-42	Product Weight 0.90 lbs

Product Questions & Answers (2)

Question by: Howard M on Jul 1, 2025, 3:40 PM

Will this here fitting work to hook up a JIC line to a DIN port?

Answer by: Customer Support on Jul 3, 2025, 6:11 AM

Yes, this adapter is designed to connect a 1-5/16 - 12 UN JIC male thread to an M42 X 2.0 DIN Tube male thread.

Question by: Gary S on Jan 13, 2026, 7:34 AM

trying to hook up a 1-5/16 - 12 JIC male line to a DIN tube side, is that what this adapter is for?

Answer by: Customer Support on Jan 14, 2026, 8:25 PM

For tying two different thread standards together, it bridges a 1-5/16 - 12 UN JIC male on one end to an M42 x 2.0 DIN tube male on the other, in a straight adapter body.
