Mjic X Male Din 2353 S

Description & Features

This Adaptall straight fitting connects a 1-1/4" JIC male end to a DIN 2353 tube fitting with a S38 size. The Mjic X Male Din 2353 S adapter is made from steel for durability and reliable performance in hydraulic applications.

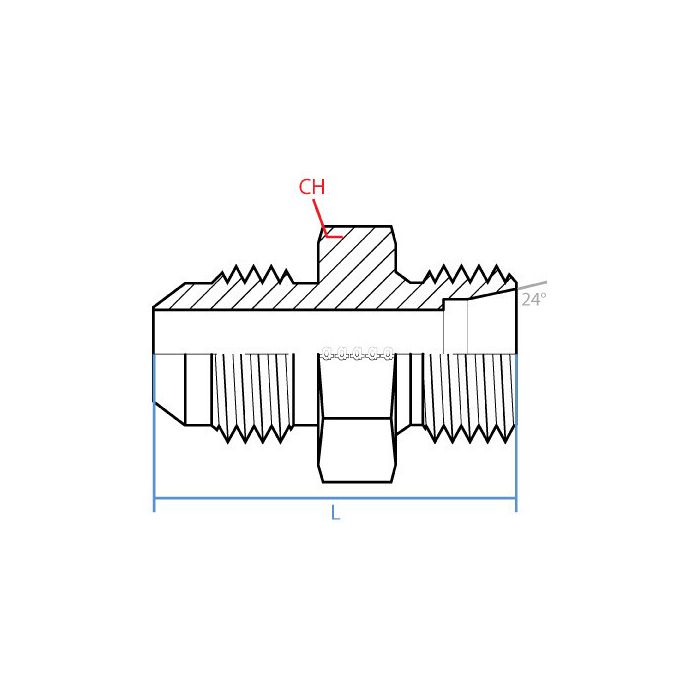

The Side 1 JIC end features a 1-5/8 - 12 UN thread, while the Side 2 DIN tube end has a M52 X 2.0 thread. The wrench flat measures 57mm, and the overall length is 64.9mm.

SKU: 9606-20-S38-52

Supplier Part Number (MPN): 9606-20-S38-52

Specifications

Connection Size 1 1-1/4 in	Connection Size 2 38S	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514	Dimensions 64.9 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9606 Series	Thread Size 1-5/8-12 x M52x2

Product Questions & Answers (3)

Question by: Darryl T on Nov 15, 2025, 12:27 PM

Got a machine running 1-1/4" JIC lines and need to tie into a DIN 2353 S38 port, this straight adapter do the trick?

Answer by: Customer Support on Nov 16, 2025, 4:01 PM

That's what this fitting is built for. One end is a 1-1/4" JIC male with a 1-5/8-12 UN thread, and the other end is a male DIN 2353 tube connection in S38 size with an M52 x 2.0 thread. Straight configuration, no offsets or angles, so it keeps the hydraulic connections clean when the two ports line up directly. Steel construction holds up well in standard hydraulic service.

Question by: Neil R on Jan 18, 2026, 8:45 PM

got a hose end that’s 1-1/4 JIC male. will this adapter get me over to a DIN 2353 S38 tube fitting?

Answer by: Customer Support on Jan 20, 2026, 6:22 AM

For that kind of hookup, the fit is a 1-1/4 inch JIC male on Side 1 with a 1-5/8 - 12 UN thread, and a DIN 2353 male tube end on Side 2 in size S38 with an M52 x 2.0 thread.

Question by: Howard G on Jun 17, 2025, 7:18 PM

Is this here adapter made of steel all the way through?

Answer by: Customer Support on Jun 19, 2025, 1:40 PM

For durability and reliable performance in hydraulic applications, this Adaptall straight fitting is indeed made from steel.
