Mjic X Male Din 2353S (Sealed)

Description & Features

Crafted from durable steel, the Adaptall Mjic X Male Din 2353S (Sealed) fitting is designed for precision and reliability in hydraulic systems. Featuring a straight configuration, it offers a robust connection between JIC and DIN tube standards. On one end, it boasts a 3/4 - 16 UNF male thread suited for 1/2" JIC fittings, while the opposite end integrates a M24 X 1.5 male thread compatible with S16 DIN tube connections.

With a compact length of 43.5mm and a width of 32mm, this fitting ensures ease of installation in constrained spaces without compromising on performance. The high-quality construction guarantees enduring performance, making it an ideal choice for applications requiring secure and leak-proof connections in industrial hydraulic systems.

SKU: 9606S-08-S16-24

Supplier Part Number (MPN): 9606S-08-S16-24

Specifications

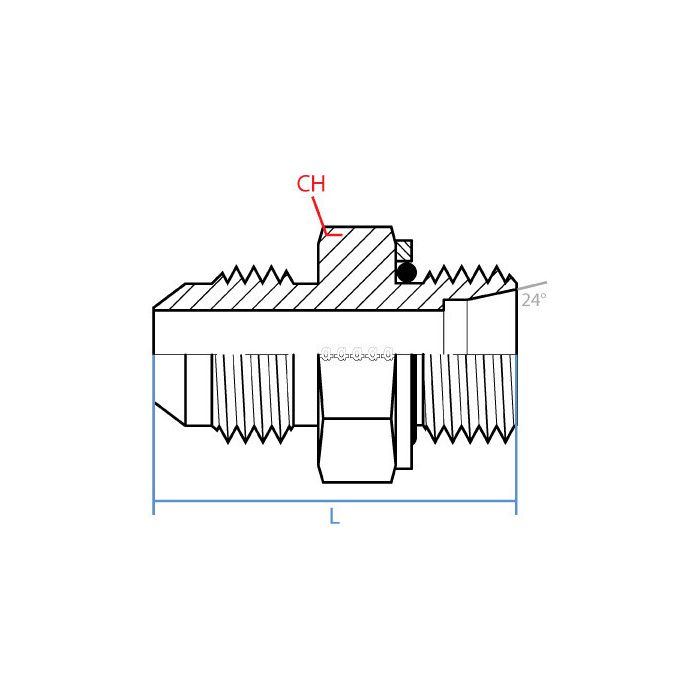

CH Width 32mm	L Length 43.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-08-S16-24	Product Weight 0.20 lbs

Product Questions & Answers (2)

Question by: Steve A on Jan 7, 2026, 5:57 PM

got a hose end that’s 1/2 JIC, will this adapter screw right on and then go into an S16 DIN tube port?

Answer by: Customer Support on Jan 9, 2026, 10:42 AM

The JIC side is a 3/4 - 16 UNF male thread sized for 1/2 inch JIC, and the other side is an M24 x 1.5 male thread made to match an S16 DIN tube connection (DIN 2353S sealed). If those are the two ends you are mating to, the thread sizes and types line up.

Question by: Tammy J on Aug 8, 2025, 5:04 PM

fitting goes from JIC on one end to DIN tube on the other -- what sizes exactly are we talking on both sides?

Answer by: Customer Support on Aug 10, 2025, 6:30 AM

On the JIC side you've got a 3/4-16 UNF male thread, which is your standard 1/2" JIC size. The other end is M24 x 1.5 male thread, sized for S16 DIN tube connections. Both ends are male, so keep that in mind when you're planning your port or hose end connections.
