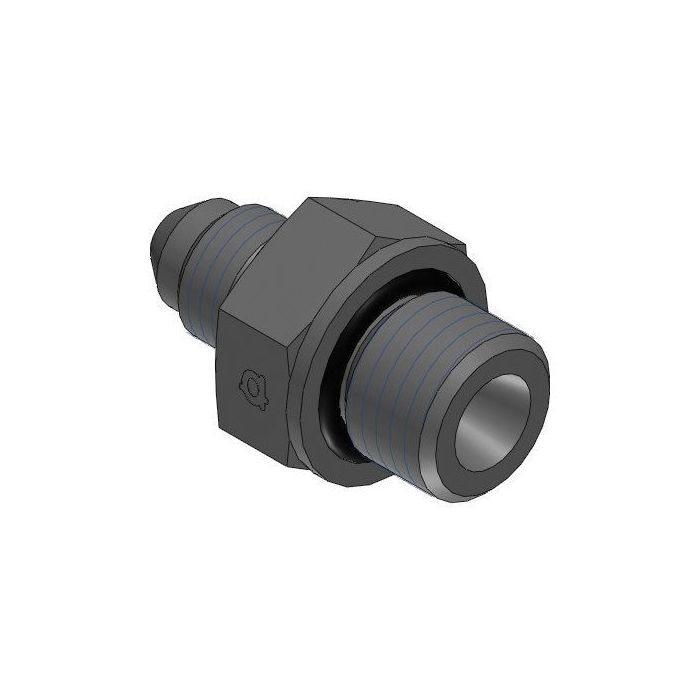

main product photo

Mjic X Male Din 2353S (Sealed)

Ask A Question

Description & Features

Designed for use in precision-based applications this connection provides dual functionality. One end features a 7/8 - 14 UNF thread with a 5/8" Male Jic connection while the other end has an M24 X 1.5 Male Din Tube connection.

Manufactured by Adaptall America this steel connector offers a straight orientation and measures 44.2mm in length and 30mm in width. Reliability and quality are assured making this item suitable for industrial applications. The product is not adjustable and does not come with additional components such as a check valve color coding or any electrical elements.

Its steel construction ensures durability and consistent performance tailored to meet rigorous standards.

Supplier Part Number: 9606S-10-S16-24

Specifications

Connection Size 1
5/8 in
Connection Size 2
S16
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male DIN 24 deg Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
44.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9606S Series
Thread Size
7/8-14, M24x1.5

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Wade H on Jan 15, 2026, 2:47 PM
Will this here fitting hold up okay in an industrial setting?
Answer by: Customer Support on Jan 16, 2026, 6:03 PM
Its steel construction is designed to ensure both durability and consistent performance, making it suitable for demanding industrial applications.
Question by: Johnny M on Mar 9, 2026, 9:23 PM
trying to hook up a 5/8 male JIC hose end to a metric DIN tube port, is this the right adapter?
Answer by: Customer Support on Mar 11, 2026, 10:58 AM
On the JIC side you get a 5/8 inch male JIC with a 7/8-14 UNF thread. The other end is a male DIN 2353S metric tube connection called out as M24 x 1.5, size S16, so it bridges those two connection types in a straight steel fitting.
Question by: Howard P on Jan 31, 2026, 3:42 PM
Got a tube line running M24 x 1.5 metric DIN and need to tie into a JIC fitting on the other end, this the right connector for that?
Answer by: Customer Support on Feb 1, 2026, 8:32 PM
That's what this one's built for. One end is a 5/8" Male JIC with a 7/8-14 UNF thread, and the other is an M24 x 1.5 Male DIN tube connection. Steel construction, straight orientation, so if your layout runs in a direct line between those two connection types, this adapter bridges them without needing extra pieces in between.
