Mjic X Male Din 2353S (Sealed)

Ask A Question

Description & Features

Designed for precision and reliability this male DIN 2353S fitting from Adaptall America offers exceptional performance in metric to 37 flare connections. Constructed from durable steel it ensures long-lasting use and maintains a straight configuration for streamlined integration into your systems.

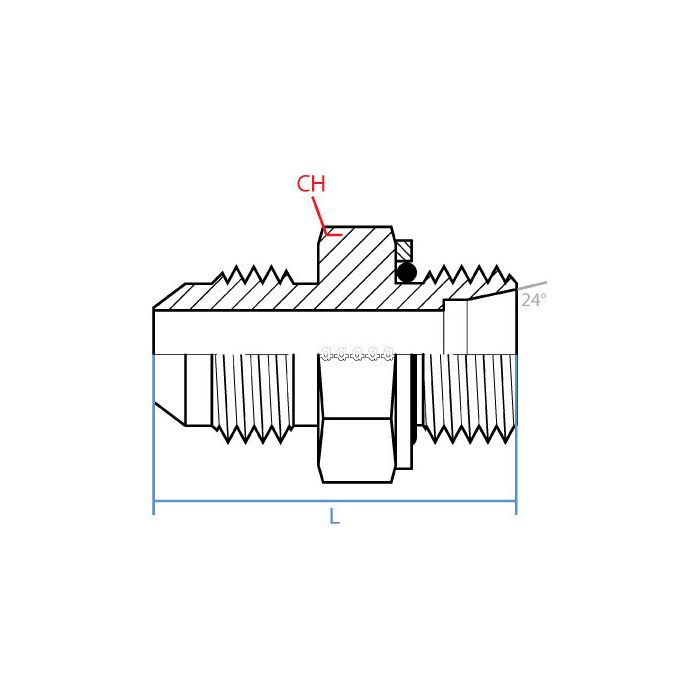

Featuring a 1-inch JIC fitting on one side (1-5/16 - 12 UN) and an M30 X 2.0 DIN tube connection on the other this fitting provides a secure and sealed connection suitable for various industrial environments. The fitting's dimensions are 36mm in width (CH width) and 51.3mm in length (L Length) ensuring compatibility with standard setups.

Brand: Adaptall America

Supplier Part Number: 9606S-16-S20-30

Specifications

Connection Size 1
1 in
Connection Size 2
20 mm
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male DIN 24 deg Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
51.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
36 mm
Material
Steel
Material Construction
Carbon Steel
Series
9606S Series
Thread Size
1-5/16-12 x M30x2

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Jerry H on Jul 15, 2025, 8:59 AM
Got a line running M30 x 2.0 metric tube on one end and JIC on the other, this fitting gonna bridge that gap clean?
Answer by: Customer Support on Jul 16, 2025, 12:28 PM
Yeah, that's exactly what it's built for. One side is a 1-inch JIC male (1-5/16-12 UN thread) and the other is an M30 x 2.0 male DIN tube connection, so it bridges that metric-to-37-degree flare transition in a single straight fitting. No adapters stacked on adapters, just one solid steel piece handling both ends. The sealed DIN 2353S design keeps the connection tight, which matters when you're pulling it into a working system.
Question by: Ricky M on Mar 28, 2026, 3:10 PM
Hey, will this here fitting work to connect a 1-inch JIC to an M30 metric tube?
Answer by: Customer Support on Mar 30, 2026, 8:44 AM
This Adaptall fitting is designed to do just that - connect a 1-inch JIC fitting to an M30 X 2.0 DIN tube connection. It's a straight fitting, so it'll give you a direct connection.
