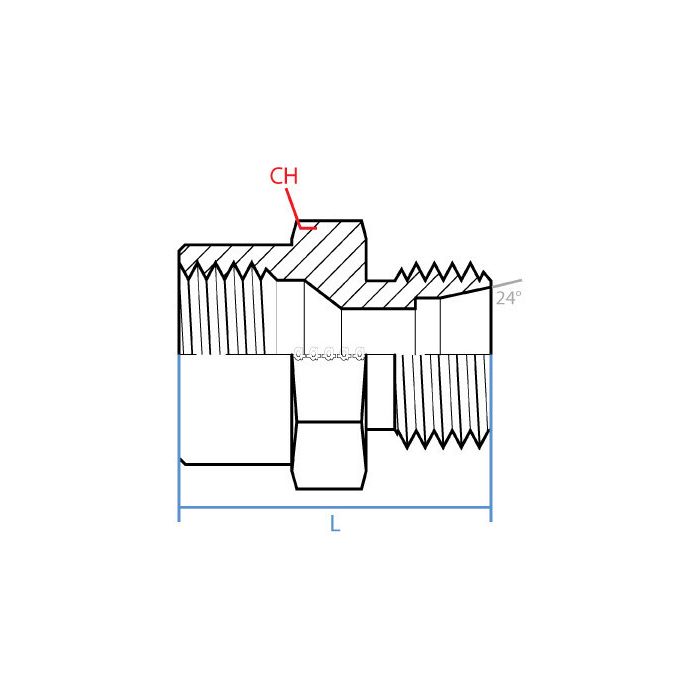

main product photo

Fjic X Male Din 2353L

Ask A Question

Description & Features

This high-quality fitting named Fjic X Male Din 2353L efficiently links a variety of industrial fluid handling applications. With a robust steel composition this straight adapter is durable and designed for long-lasting performance.

Featuring a 7/16 - 20 UNF female JIC side and an M12 X 1.5 male DIN tube side it accommodates a range of connections. The adapter functions seamlessly thanks to its precision engineering and adaptability.

The fitting dimensions include a length of 25.1mm and a width of 17.5mm making it a versatile component for various setups.

Produced by Adaptall America it's trusted by professionals for reliability and efficiency.

Supplier Part Number: 9624-04-L06-12

Specifications

Connection Size 1
1/4 in
Connection Size 2
6 mm
Connection Type
Female JIC, Male Metric
Connection Type 1
Female JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
25 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
9624 Series
Thread Size
7/16-20 x M12x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Wes M on Jun 18, 2025, 7:28 AM
What size connections does this adapter actually have on each end? Trying to figure out if it'll work with what I already got on my machine.
Answer by: Customer Support on Jun 19, 2025, 8:55 PM
One end is a 7/16-20 UNF female JIC, which is a 1/4 inch JIC connection. The other end is an M12 x 1.5 male DIN tube fitting, sized at L06. So if you've got a JIC female port on one side and need to tie into a metric DIN tube fitting on the other, this is the piece that bridges those two together.
