Fjic X Male Din 2353L

Description & Features

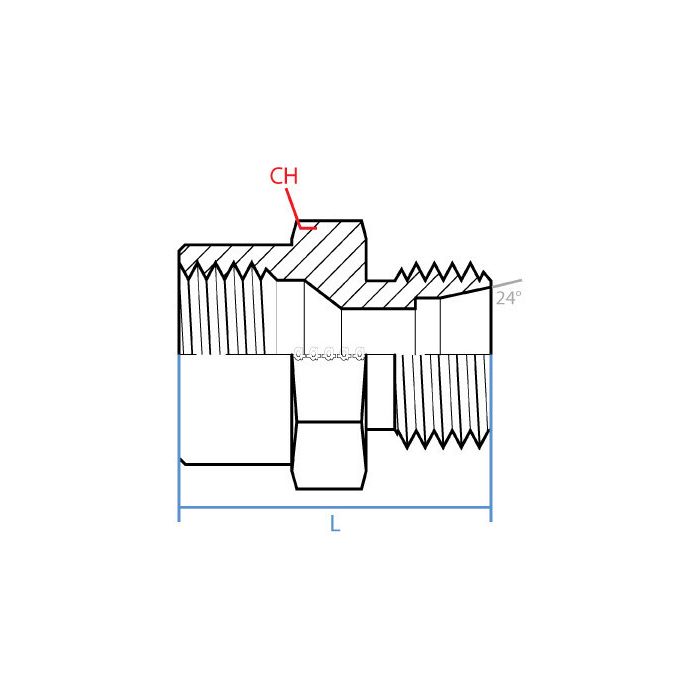

The Fjic X Male Din 2353L fitting from Adaptall America offers robust steel construction and a straight shape design. This component is engineered for seamless integration with metric flared connections. Featuring a 9/16 - 18 UNF female JIC connection on one end and an M14 X 1.5 male DIN tube connection on the other it ensures reliable and efficient performance in demanding industrial applications.

This fitting has a width of 19mm and a length of 25.5mm providing a compact yet durable solution for various hydraulic and pneumatic systems. The use of high-quality materials guarantees long-lasting usage even in harsh environments.

With precision threading and solid build this Adaptall America product meets stringent industry standards ensuring compatibility and reliability. Ideal for professionals looking for dependable and high-performing metric to 37 flare fittings.

Supplier Part Number: 9624-06-L08-14

Specifications

Connection Size 1 3/8 in	Connection Size 2 8 mm	Connection Type Female JIC, Male Metric	Connection Type 1 Female JIC	Connection Type 2 Male DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 25.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 9624 Series	Thread Size 9/16-18 x M14x1.5

Product Questions & Answers (1)

Question by: Kent O on Aug 26, 2025, 8:35 AM

what's the thread size on the JIC end of this fitting, and does it hook up to standard 37-degree flare hose ends?

Answer by: Customer Support on Aug 27, 2025, 2:23 PM

The JIC side runs a 9/16-18 UNF female thread, which is the standard size for 3/8" JIC connections. That thread pattern mates with 37-degree flare fittings, so it'll connect to any standard JIC male hose end of the same size without issue.
