Fjic X Male Din 2353S

Ask A Question

Description & Features

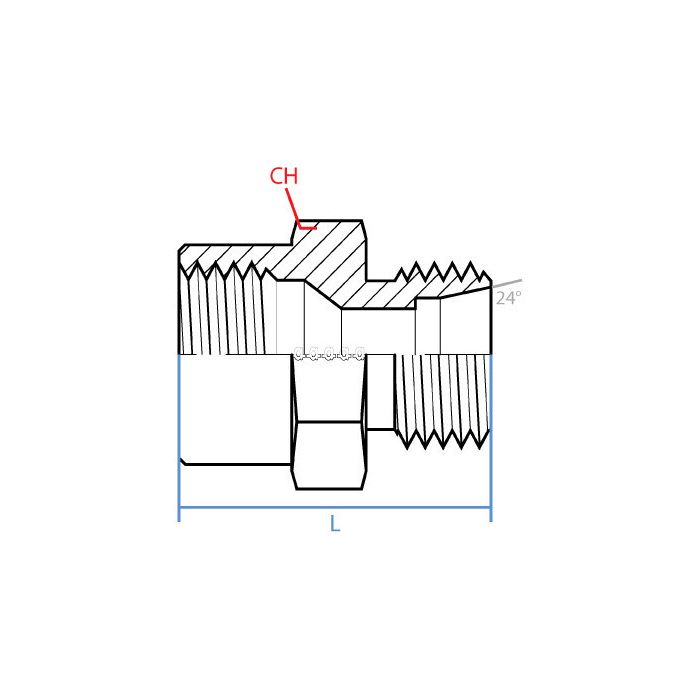

Adaptall America presents a 3/8" female JIC to 10mm male DIN 2353S straight adapter crafted from high-quality steel to ensure long-term durability and reliability. Engineered with precision this fitting features a 9/16 - 18 UNF thread on Side 1 and M18 x 1.5 DIN tube compatibility on Side 2.

The 22mm CH width and 29.3mm length make this product suitable for metric to 37 flare applications in professional and industrial settings. The absence of adjustable components and other unnecessary features ensures a streamlined installation process. This product provides exceptional performance when connecting hydraulic systems requiring metric to flare transitions.

Supplier Part Number: 9624-06-S10-18

MPN: Fjic X Male Din 2353S

Specifications

Connection Size 1
3/8 in
Connection Size 2
10 mm
Connection Type
Female JIC, Male Metric
Connection Type 1
Female JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
29.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9624 Series
Thread Size
9/16-18 x M18x1.5

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Sherry H on Apr 2, 2026, 6:17 PM
Got a hydraulic line coming off a metric DIN tube fitting and need to tie into some JIC fittings on the other end. This a straight shot adapter or is there any swivel or rotation to it?
Answer by: Customer Support on Apr 3, 2026, 9:29 PM
Straight through, no swivel. The adapter runs from a 3/8" female JIC on one end to a male DIN tube connection on the other, and neither side rotates or adjusts. Both threads are fixed, so your lines need to be aligned before you torque it down. The JIC side runs a 9/16-18 UNF thread, and the DIN side is M18 x 1.5 for S10 metric tube. If your hydraulic connections is already routed and positioned correctly, it drops right in without any fuss.
