Fjic X Male Din 2353L

Description & Features

ADAPTALL AMERICA's Fjic X Male Din 2353L offers precision and durability for professional hydraulic systems.

Crafted from robust steel this straight adapter integrates 3/4 - 16 UNF female threads on one side and M18 X 1.5 male threads on the other.

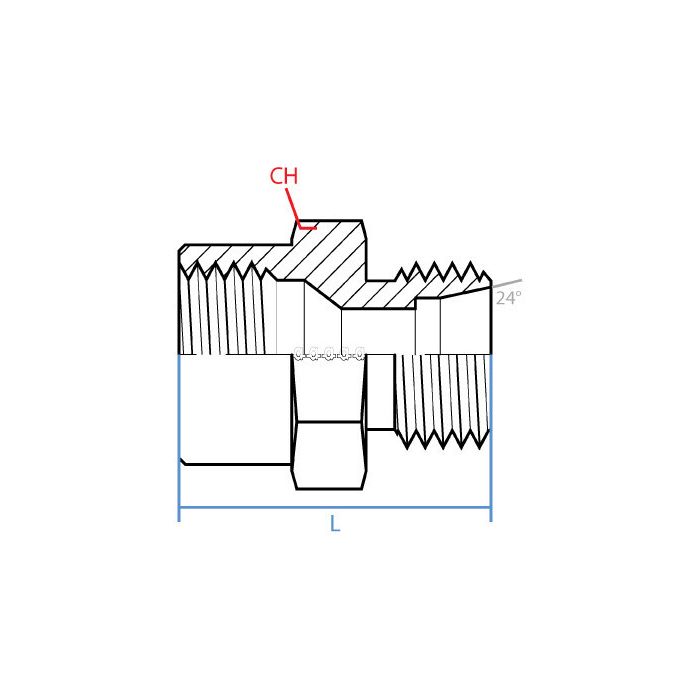

It features a CH width of 24mm and a length of 30.1mm ensuring a solid and dependable connection.

Supplier Part Number: 9624-08-L12-18

Specifications

Connection Size 1 1/2 in	Connection Size 2 12 mm	Connection Type Female JIC, Male Metric	Connection Type 1 Female JIC	Connection Type 2 Male DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 30 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9624 Series	Thread Size M18x1.5 x 3/4-16

Product Questions & Answers (3)

Question by: Frank M on Aug 18, 2025, 9:25 PM

Can this here fitting handle hydraulic fluid without any issues?

Answer by: Customer Support on Aug 20, 2025, 9:56 AM

It's crafted from robust steel, making it suitable for use with hydraulic fluids in professional systems.

Question by: Neal R on Jul 6, 2025, 5:47 PM

got a hose end with 3/4-16 UNF female JIC on it, will this adapter go over to an M18 x 1.5 male DIN tube end?

Answer by: Customer Support on Jul 8, 2025, 6:47 AM

Built for that exact conversion, it has a 3/4 - 16 UNF female JIC on one side and an M18 x 1.5 male DIN 2353L tube connection on the other, in a straight steel body.

Question by: Warren A on Dec 6, 2025, 6:37 PM

Part number on this is 9624-08-L12-18, that the same as MI-08738414 or are those different parts?

Answer by: Customer Support on Dec 8, 2025, 7:35 AM

Same part, different number systems. MI-08738414 and MINO-03671X97021 are both alternate part numbers that reference the exact same adapter. Suppliers and distributors sometimes catalog it under different codes depending on their system, but you're looking at the same piece either way.
