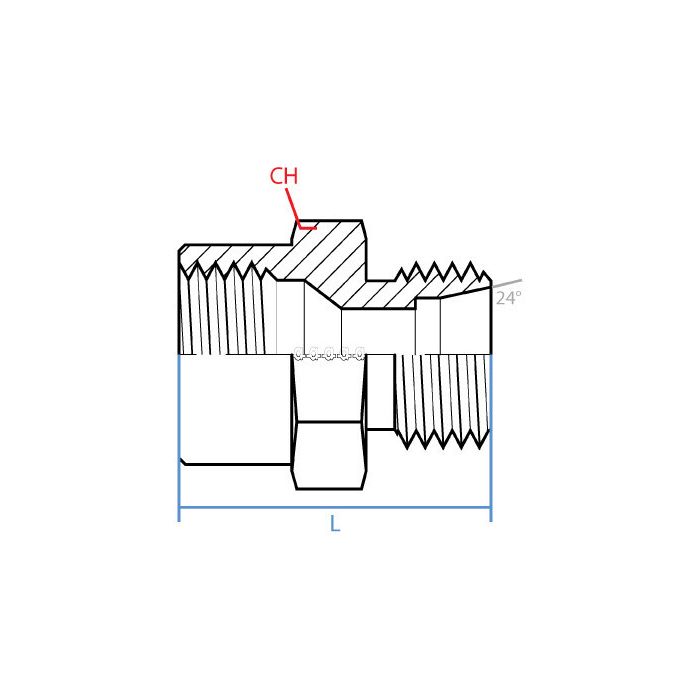

main product photo

Fjic X Male Din 2353L

Ask A Question

Description & Features

The Fjic X Male Din 2353L from Adaptall America presents a durable and precision-engineered solution for your industrial fluid and hydraulic connections. Constructed from high-quality steel this adapter ensures long-lasting reliability in demanding environments.

This straight coupling features a female 3/4 - 16 UNF JIC connection on one side and a male M22 X 1.5 DIN tube connection on the other making it suitable for a range of hydraulic applications. The 27mm width and 32.7mm length dimensions facilitate compatibility with various system configurations.

Engineered without adjustable components this coupling provides a straightforward secure fit without the need for additional adjustments. Designed with precision it caters to the stringent requirements of industrial applications ensuring a leak-free robust connection.

Perfect for sectors requiring robust and reliable fluid connection solutions the Fjic X Male Din 2353L offers a dependable choice. Adaptall America's commitment to quality is reflected in this product's superior performance and integration capabilities.

Supplier Part Number: 9624-08-L15-22

Specifications

Connection Size 1
1/2 in
Connection Size 2
15 mm
Connection Type
Female JIC, Male Metric
Connection Type 1
Female JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
30 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9624 Series
Thread Size
M22x1.5 x 3/4-16

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Connie E on Jul 24, 2025, 8:30 PM
Got a line running 3/4-16 UNF JIC on one end and need to tie into an M22 x 1.5 DIN tube fitting on the other, this the right adapter for that?
Answer by: Customer Support on Jul 26, 2025, 11:31 AM
That's what this one's built for. One side is a female 3/4-16 UNF JIC connection and the other is a male M22 x 1.5 DIN tube fitting. Straight configuration, no adjustable components, so it threads up and locks in without any fuss. Steel construction holds up well in working hydraulic environments.
