Fjic X Male Din 2353S

Description & Features

Constructed from high-quality steel this fitting ensures durability and reliability in demanding environments. The straight shape facilitates straightforward installation and integration within various systems.

Side 1 features a 3/4 - 16 UNF connection with a 1/2" JIC female end while Side 2 is equipped with an M20 X 1.5 male DIN tube connection. This product is designed to deliver optimal performance and compatibility for metric to 37 flare applications.

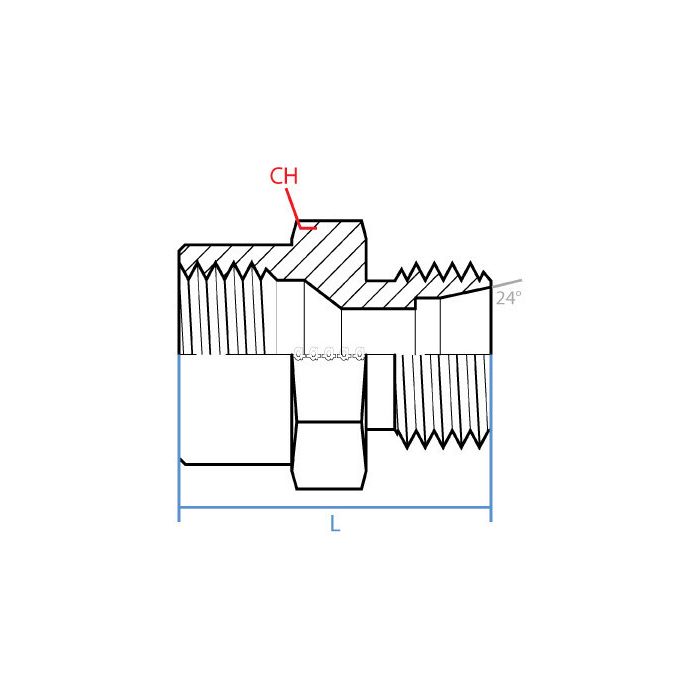

With a width of 27mm and a length of 30mm it meets precise dimensional standards. The Fjic X Male Din 2353S by Adaptall America is ideal for specific industrial and technical requirements.

Supplier Part Number: 9624-08-S12-20

Specifications

Connection Size 1 1/2 in	Connection Size 2 12 mm	Connection Type Female JIC, Male Metric	Connection Type 1 Female JIC	Connection Type 2 Male DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 30.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9624 Series	Thread Size M20x1.5 x 3/4-16

Product Questions & Answers (2)

Question by: Randy F on Oct 20, 2025, 8:48 AM

got a hose end that’s 3/4-16 UNF JIC female, will this mate up to a metric DIN tube on the other side?

Answer by: Customer Support on Oct 21, 2025, 7:55 PM

For a metric to 37 degree flare hookup, it bridges a 1/2 inch JIC female end with a 3/4 - 16 UNF thread on Side 1 over to an M20 x 1.5 male DIN tube connection on Side 2 (S12).

Question by: Travis H on Feb 16, 2026, 8:10 PM

Will this fitting hold up alright in a hydraulic system running at, say, 3000 PSI? Just wanna make sure it can handle the pressure.

Answer by: Customer Support on Feb 18, 2026, 1:09 PM

Constructed from high-quality steel, this fitting is built for durability and reliability, even in demanding hydraulic environments. While the specific PSI rating isn't provided, the robust steel construction suggests it should be suitable for many standard hydraulic applications.
