Fjic X Male Din 2353S

Description & Features

The Fjic X Male Din 2353S manufactured by Adaptall America exemplifies high-quality engineering with its precise machining and durable construction. The steel material ensures reliability and longevity in demanding applications.

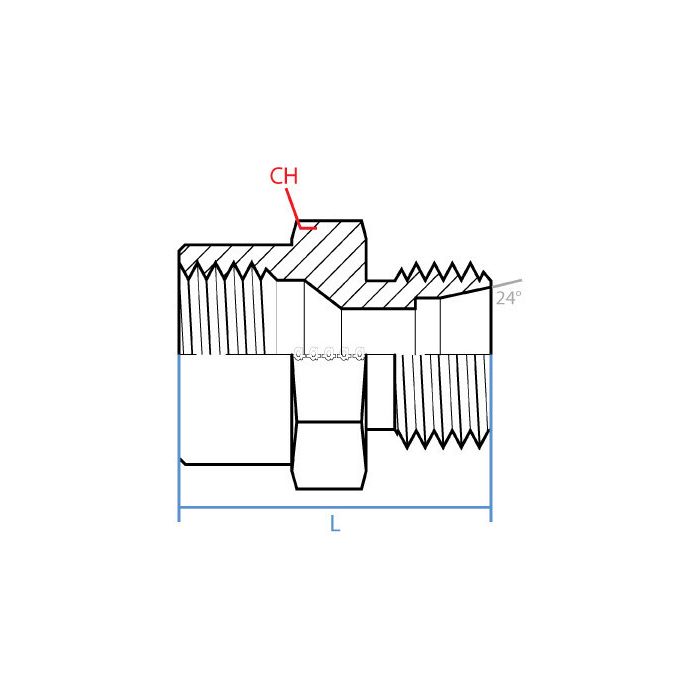

This fitting features a 1/2" JIC female connection on one side and an M22 x 1.5 male DIN tube on the other. With a straight shape and a length of 32.5mm it is designed for seamless integration into metric systems requiring 37 flare fittings.

Engineered with a CH width of 27mm this product provides a secure and tight connection. The absence of adjustable components contributes to its robust and straightforward design making it a reliable choice for various industrial settings.

Supplier Part Number: 9624-08-S14-22

Specifications

Connection Size 1 1/2 in	Connection Size 2 14 mm	Connection Type Female JIC, Male Metric	Connection Type 1 Female JIC	Connection Type 2 Male DIN Tube	Dimension Standards DIN 2353, SAE J514	Dimensions 31 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9624 Series	Thread Size M22x1.5 x 3/4-16

Product Questions & Answers (3)

Question by: Frank W on Aug 15, 2025, 1:42 PM

Got a metric tube line running M22 x 1.5 on one end and need to tie into a JIC system on the other, this fitting work for that?

Answer by: Customer Support on Aug 17, 2025, 7:54 AM

Yeah, that's exactly what this adapter is built for. One side is a 1/2" JIC female connection with a 3/4-16 UNF thread, and the other is an M22 x 1.5 male DIN tube fitting. Steel construction, straight profile, 32.5mm long. Connects metric DIN tube systems to 37-degree flare JIC lines without any intermediate adapters.

Question by: Lance R on Aug 18, 2025, 11:33 AM

trying to replace a fitting i pulled off, one side is 3/4-16 UNF female jic and the other is m22x1.5 male. is that what this is?

Answer by: Customer Support on Aug 20, 2025, 6:49 AM

Match-up wise, it’s a straight steel adapter with a 1/2 inch JIC female end that has a 3/4-16 UNF thread, and the other end is an M22 x 1.5 male DIN tube connection listed as S14.

Question by: Norm R on May 5, 2025, 9:24 AM

Will this fitting work to connect a JIC flared fitting to a DIN tube?

Answer by: Customer Support on May 6, 2025, 4:19 PM

Designed specifically for that purpose, this Adaptall fitting allows you to connect a 1/2" JIC female to an M22 x 1.5 male DIN tube.
