Fjic X Male Din 2353L

Ask A Question

Description & Features

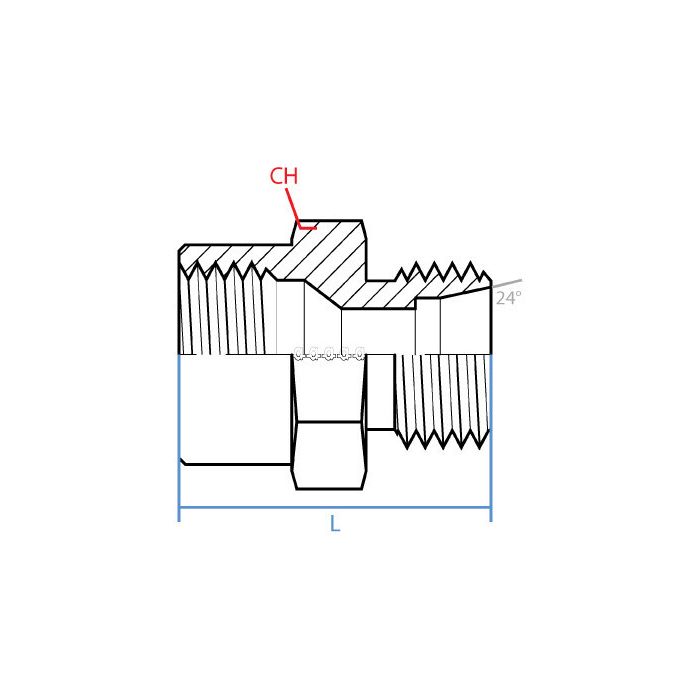

Experience reliable performance with the steel Adaptall America Fjic X Male Din 2353L fitting. This straight adapter is engineered with precision to ensure optimal connectivity between a 1-1/16 - 12 UN female JIC end and an M26 X 1.5 male DIN tube. With a CH width of 32mm and a length of 38mm this product offers robust construction and dependable durability. Manufactured to meet strict industry standards this adapter ensures secure and efficient fluid transfer in various industrial applications.

MPN: 9624-12-L18-26

Supplier Part Number: 9624-12-L18-26

Specifications

Connection Size 1
3/4 in
Connection Size 2
18 mm
Connection Type
Female JIC, Male Metric
Connection Type 1
Female JIC
Connection Type 2
Male DIN Tube
Dimension Standards
DIN 2353, SAE J514
Dimensions
38.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9624 Series
Thread Size
1-1/16-12 x M26x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Tammy R on Mar 1, 2026, 6:40 PM
Just want to make sure, this here adapter will connect a JIC to a DIN tube right?
Answer by: Customer Support on Mar 3, 2026, 7:12 AM
Yes indeed. This straight adapter ensures a solid connection between a 1-1/16 - 12 UN female JIC end and an M26 X 1.5 male DIN tube. It's built to handle fluid transfer in industrial setups.
Question by: Earl L on Jun 10, 2025, 4:31 PM
What exactly is this adapter connecting on each end, and what size threads are we talking about?
Answer by: Customer Support on Jun 12, 2025, 7:03 AM
One end is a 3/4 inch female JIC with 1-1/16 - 12 UN threads, and the other end is an M26 x 1.5 male DIN tube fitting. It runs straight through with no angle, so both connections stay in line. The overall length comes in at 38mm with a 32mm wrench flat, which makes it pretty manageable in tighter hydraulic connections setups.
